DVX DM12

Stage Monitors
Stage Monitors
305 mm 660 mm 378 mm

2-WAY ACTIVE WEDGE MONITOR

750 W RMS CLASS-D DIGIPRO®

131 dB MAX SPL

FREQUENCY RESPONSE [+/-3 dB]: 68 - 19.000 Hz

HF: 1x 1.4" - 2.5" v.c. NEODYMIUM

LF: 1x 12" - 3" v.c. NEODYMIUM

Sales & Rental Network

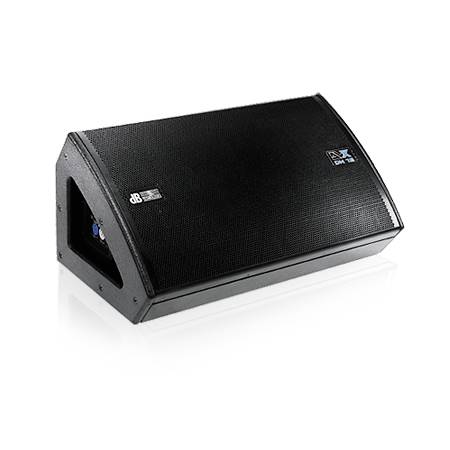

Featuring a discrete, unobtrusive design, the ultra low-profile enclosure sports a high-performance 12“ neodymium woofer paired with a 1.4“ neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.
Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today’s artists demand.

The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue’s mains power is weak and voltage is low.
The onboard controller encompasses an active equalizer,
active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor’s performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.

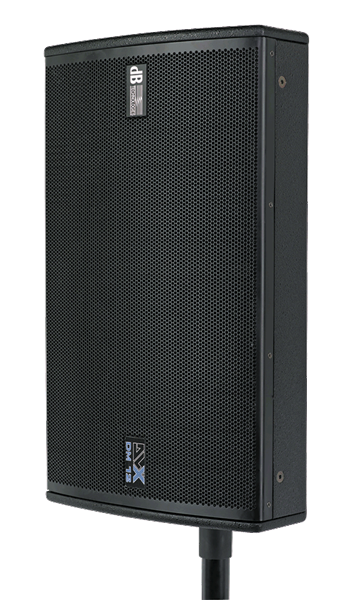

It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole
Read More

TECHNOLOGIES

Low Profile Monitor
Low Profile MonitorThe use of diffusion monitors is normally tied to stages for every kind of musical event. A monitor with a low profile design allows the stage to be more vacant on sight, optimizing space on stage in a rational way and allowing a more pleasant vision.
Neodymium Transducers
Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.
PFC (Power Factor Corrector)
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
Preset System
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Rotatable Horn
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
SMPS
SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.
Product code: 103010135
Technical Data
Speaker Type
2-Way Active Stage Monitor

Acoustical data
Frequency Response [-10dB]
55 - 20.000 Hz

Frequency Response [+/- 3dB]
68 - 19.000 Hz

Max SPL
131 dB

HF
1.4 "

Type HF
Neodymium Compression Driver

Voice Coil HF
Titanium 2.5 "

Directivity
40x90 °

Horn
CD Horn Aluminium

Rotatable Horn
YES

LF
12 "

Type LF
Neodymium

Voice Coil LF
3 "

Amplifier
Amp Technology
Digipro®

Amp Class
Class D

Power RMS
750 W

Peak Power
1500 W

Cooling
Convection

Processor
Controller
DSP 24 Bit/48 kHz

System Presets
Flat, Monitor

Limiter
RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF
1320 Hz

Slope MF-HF
24 dB/Octave

Mechanics
Housing
Multiplex plywood

Housing Design
Low Profile Multifunctional

Angles Up
35, 55 °

Rigging Points
6x M10 4x Quick-Relase Pins

Width
660 mm (25.9 in)

Height
305 mm (12 in)

Depth
378 mm (14.8 in)

Weight
17.5 kg (55.12 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
