As for the lower end, IS series is comprised of two passive subwoofers, respectively equipped with a 1x8" or a 1x12" woofer.
The compact size of both boxes is ideal when it comes to integrate a low-end extension cabinet in a venue, without dragging too much attention to it.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design, Phoenix connectors, black or white version.
Read More
TECHNOLOGIES
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.

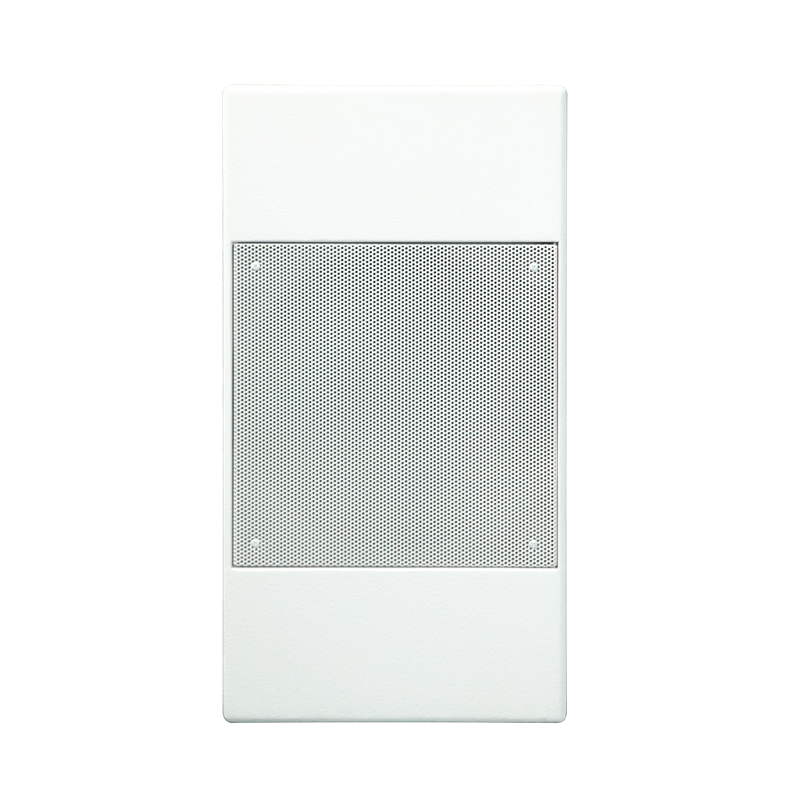

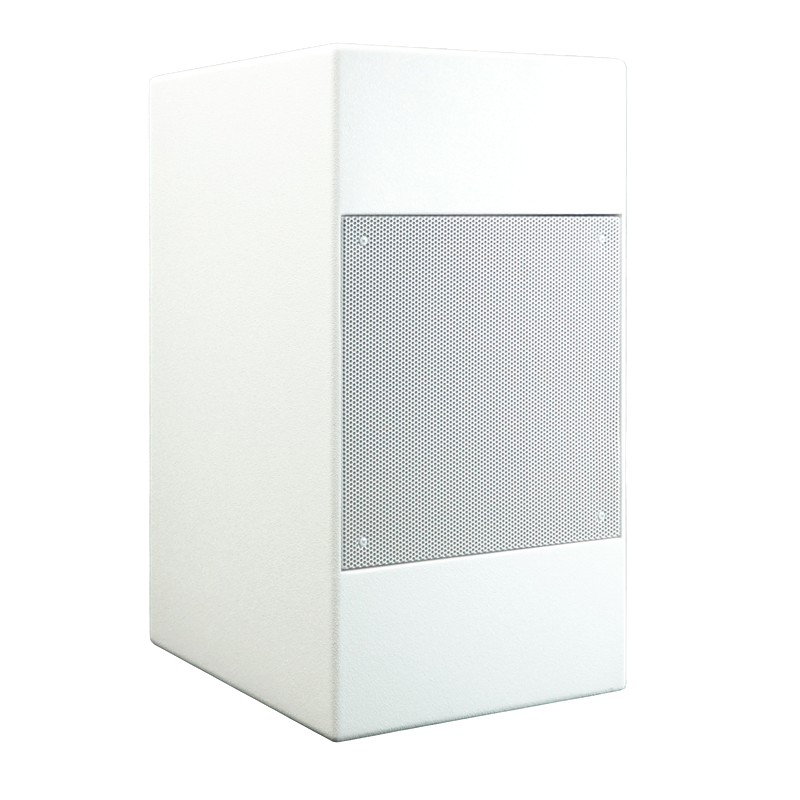

White version availableThis product is available for purchase in black or white.
IP32 RatingThe Product is protected from tools and wires larger than 2.5mm in diameter, and it is also protects against water spray at an angle less than 15 degrees from vertical.
Product code: 1030400920
Technical Data
Speaker Type
Passive Subwoofer
Acoustical data
RMS Power
250 W
Peak Power
1000 W
Frequency Response [-6 dB]
40 Hz - custom LPF
Impedance
8 Ohm
Sensitivity 1W@m
97.5 dB
Max SPL
127.5 dB
LF
1x 12", 2.5" v.c.
Input
Connections
Phoenix
Mechanics
Housing
Plywood, water-painted coating
Rigging points
16x M8 pickup point
IP rating
IP 32
Width
335 mm (13.2 in)
Height
624 mm (24.6 in)
Depth
400 mm (15.7 in)
Weight
15 kg (33 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
