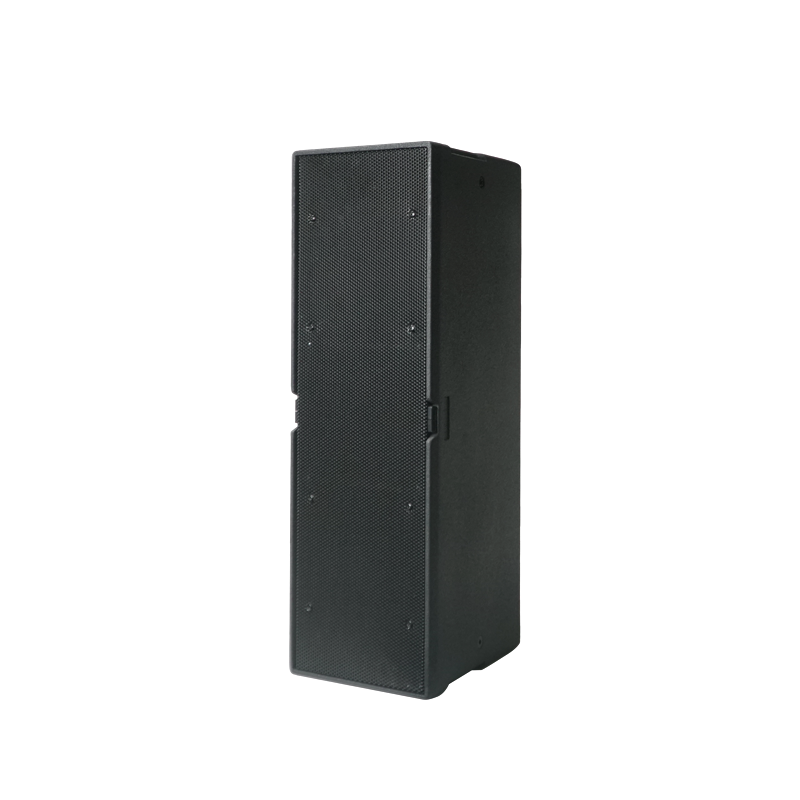

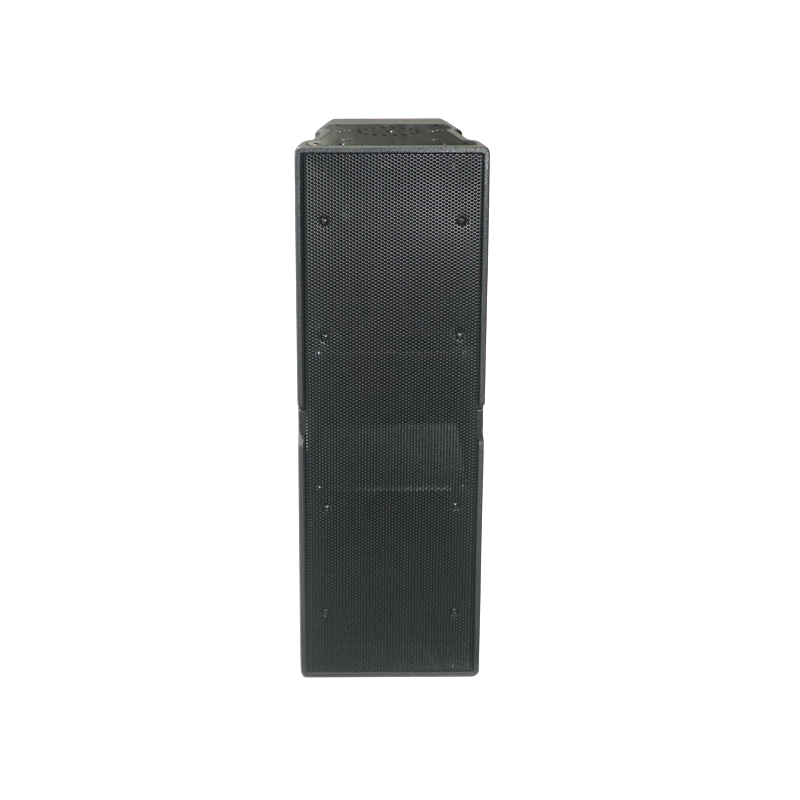

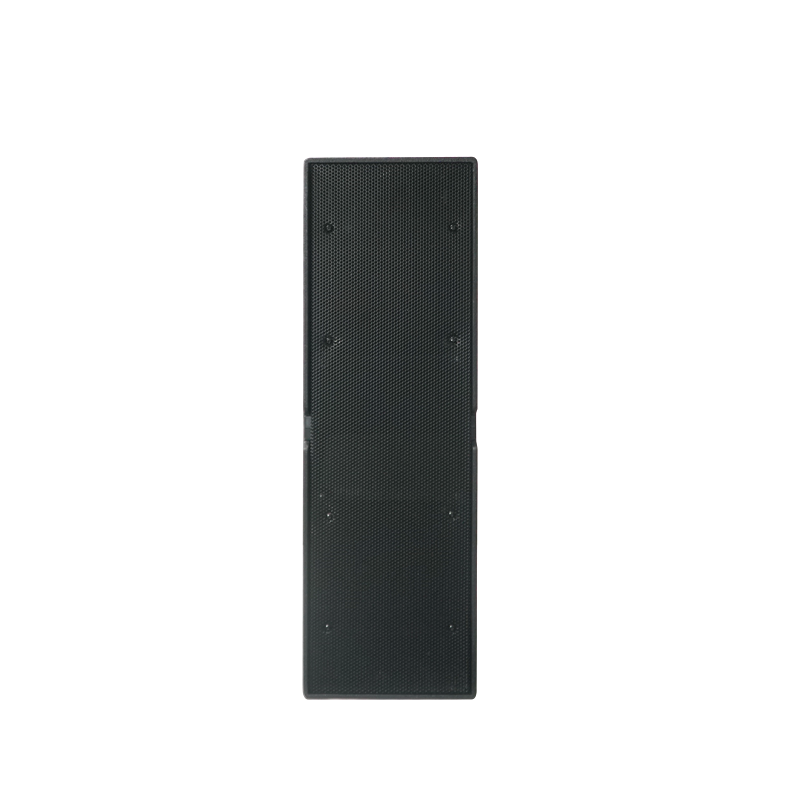

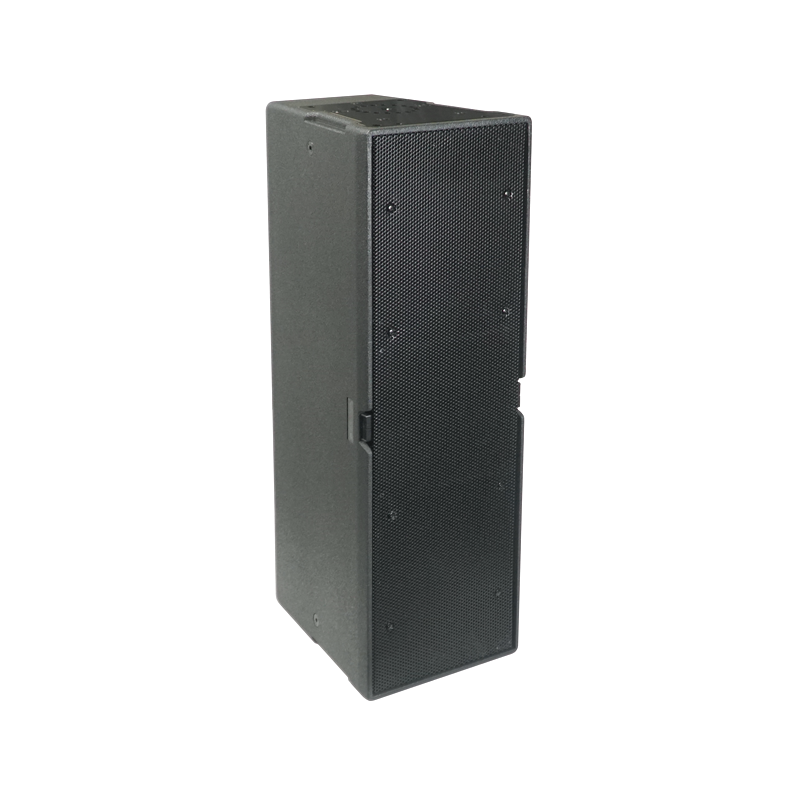

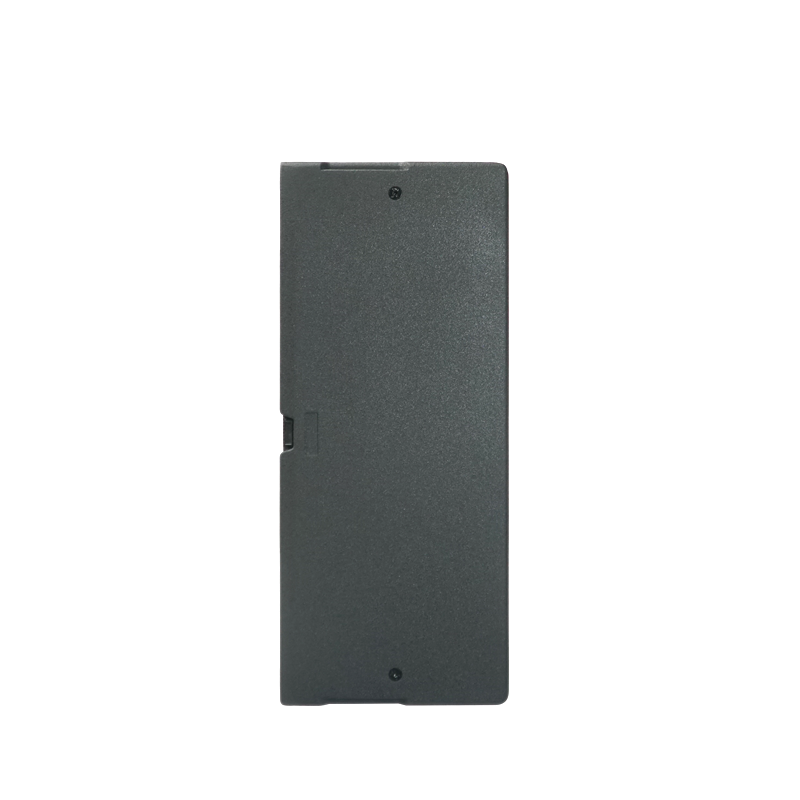

IS26T is equipped with two times 6.5" woofers plus a 1" compression driver for the higher end.
2 different coverage options are available, with the two different coverage options providing respectively 60 x90° or a 100x15° dispersion pattern, which basically, thanks to a waveguide, is turning the point source speaker into a line array. You can either fly, or stack arrays with the very same accessories you would use with the VIO X206. Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Read More
TECHNOLOGIES
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.

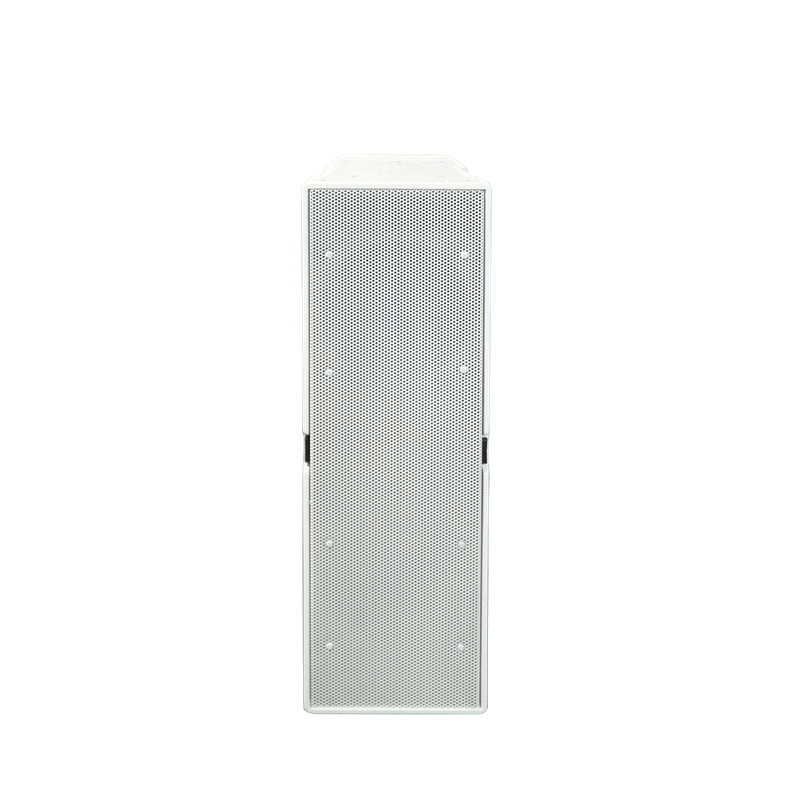

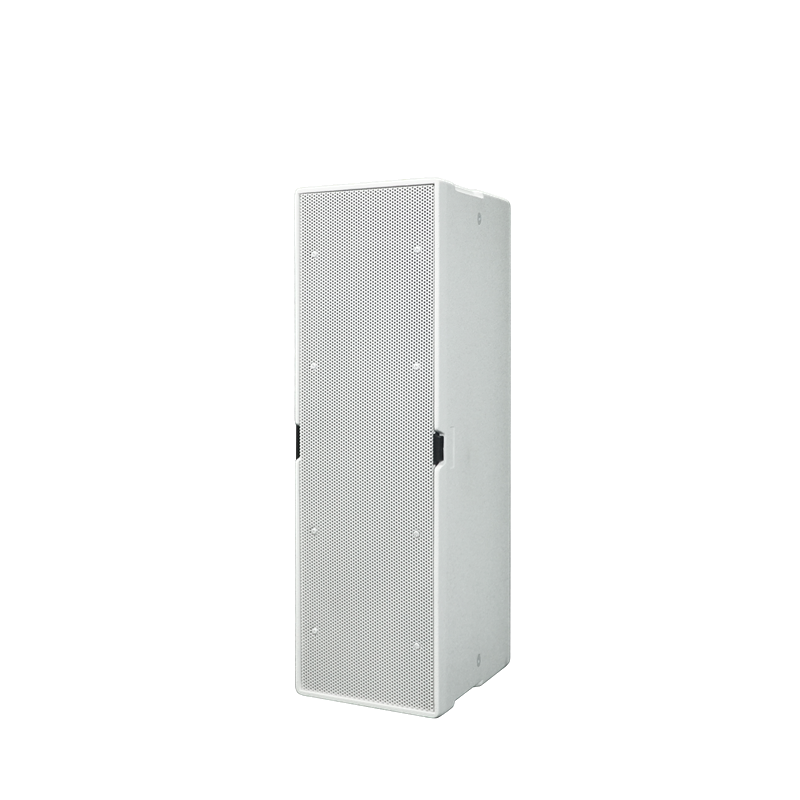

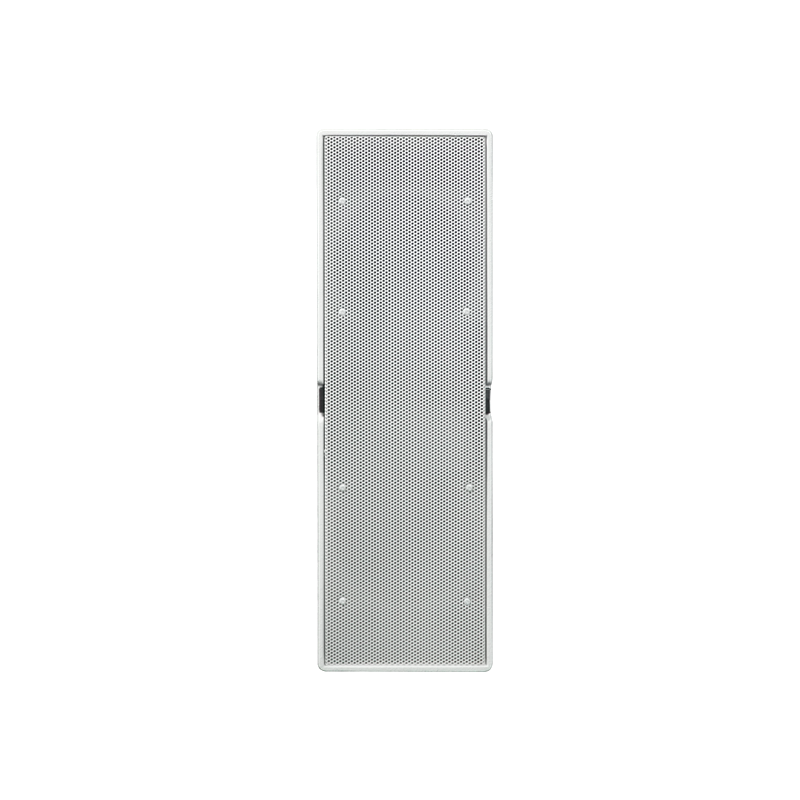

White version availableThis product is available for purchase in black or white.
IP32 RatingThe Product is protected from tools and wires larger than 2.5mm in diameter, and it is also protects against water spray at an angle less than 15 degrees from vertical.
Product code: 1030400900
Technical Data
Speaker Type
Passive 2-way Speaker
Acoustical data
RMS Power
250 W
Peak Power
1000 W
Frequency Response [-6 dB]
80 Hz - 20,000 Hz
Impedance
8 Ohm
Sensitivity 1W@m
94 dB
Max SPL
124 dB
HF
1x 1", 1.7" v.c.
LF
2x 6.5", 1.7" v.c.
IS26T Dispersion
60x90° [rotatable horn]
IS26T100 Dispersion
100x15° [H x V]
X-Over Frequency
1200 Hz (internal X-Over)
Input
Connections
Phoenix
Mechanics
Housing
Plywood, water-painted coating
Rigging points

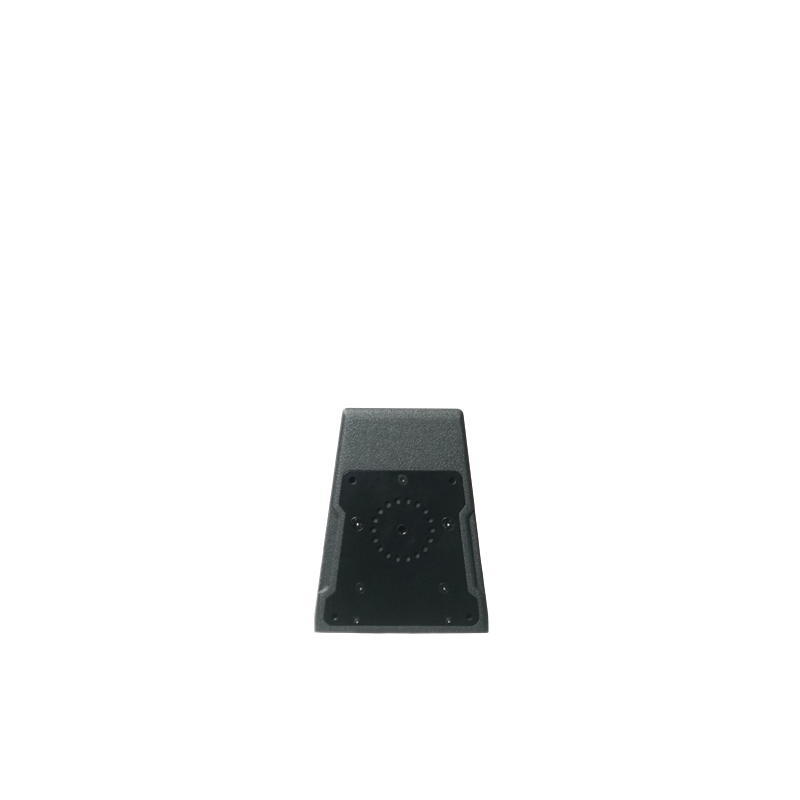

2x M10 threaded nut (top and bottom)
IP rating
IP 32
Width
210 mm (8.3 in)
Height
650 mm (25.6 in)
Depth
270 mm (10.6 in)
Weight
15.5 kg (34.17 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
