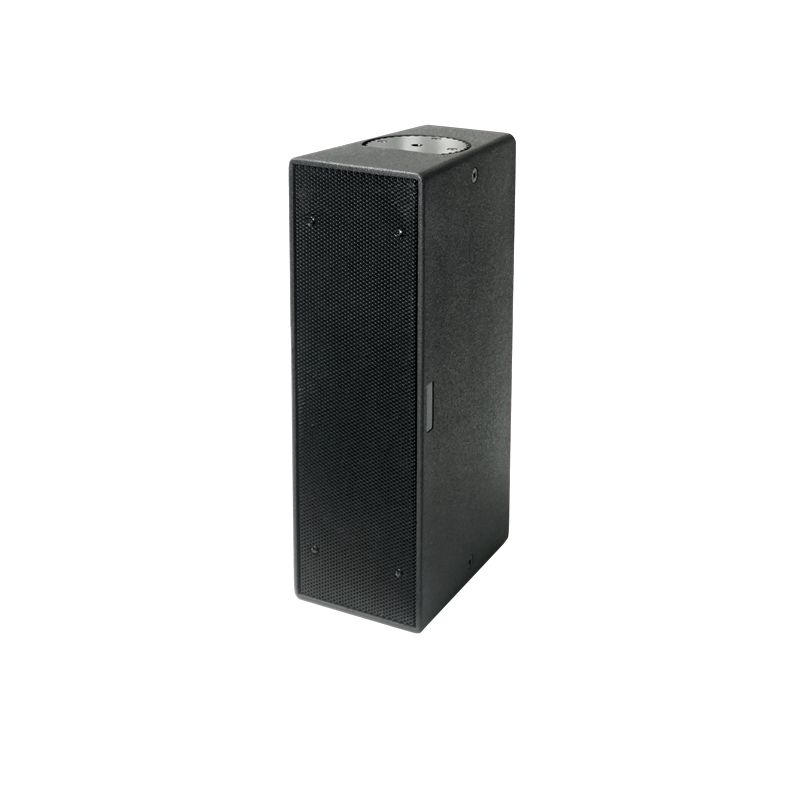

IS25T is equipped with two times 5" woofers plus a 1" compression driver for the higher end.
This box provides a 60 x100° constant dispersion, and you can easily install it either vertically or horizontally using the same accessories of VIO X205.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix or Speakon connectors, black or white version.
Read More
TECHNOLOGIES
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.

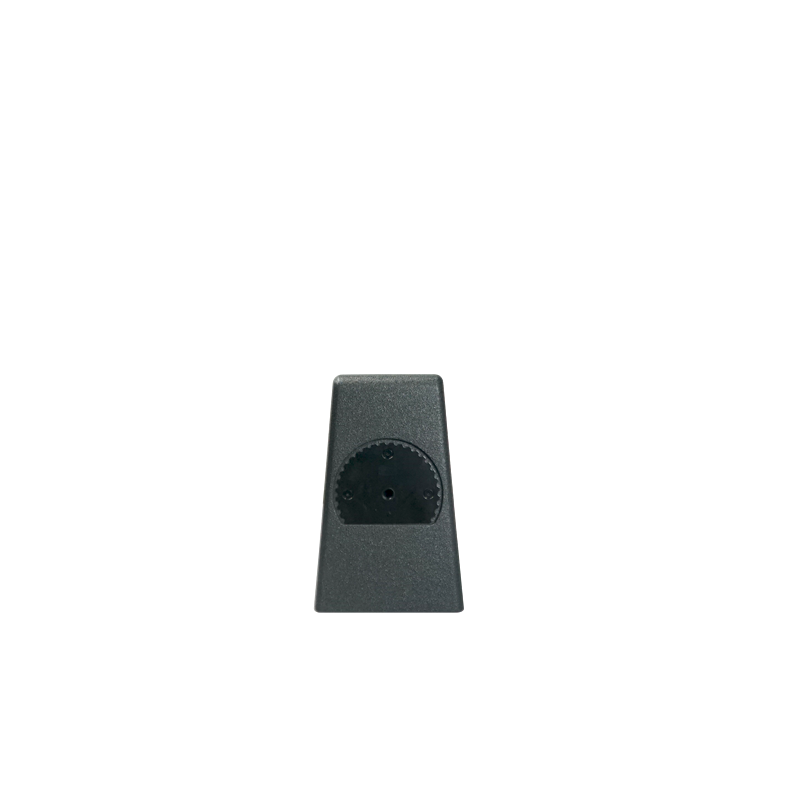

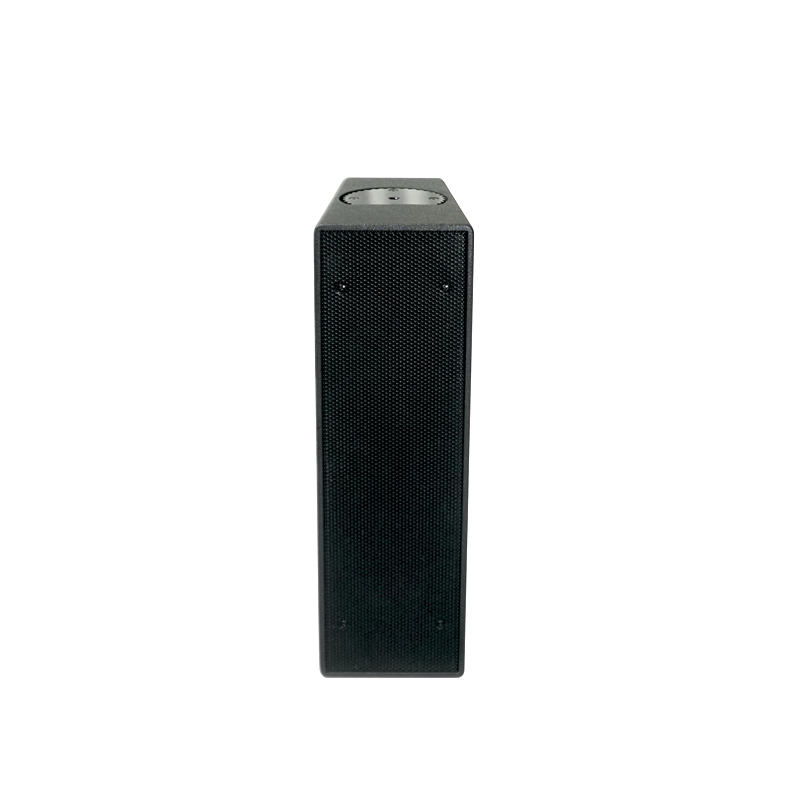

Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.

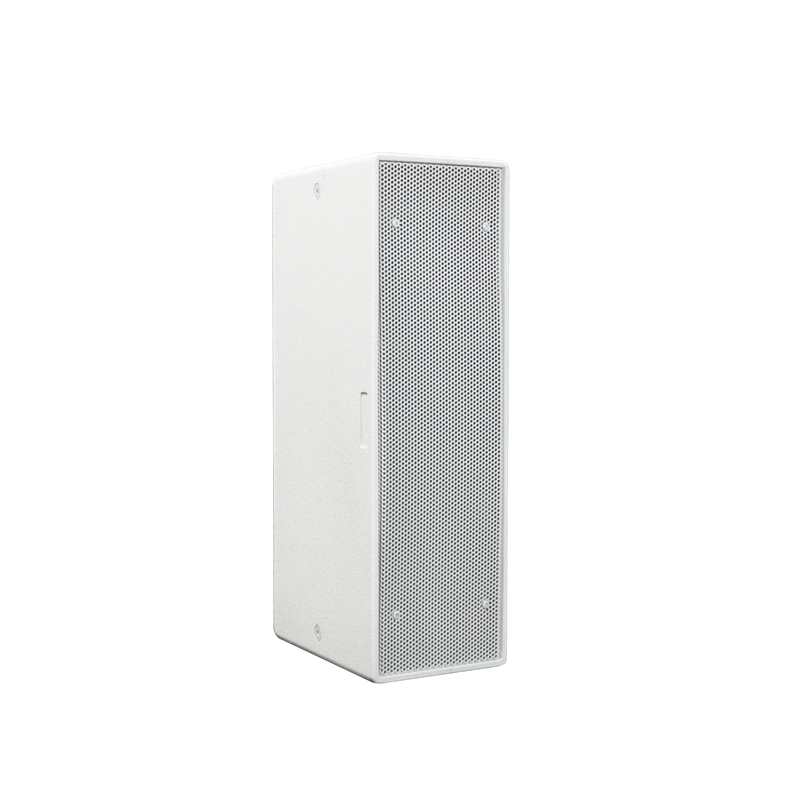

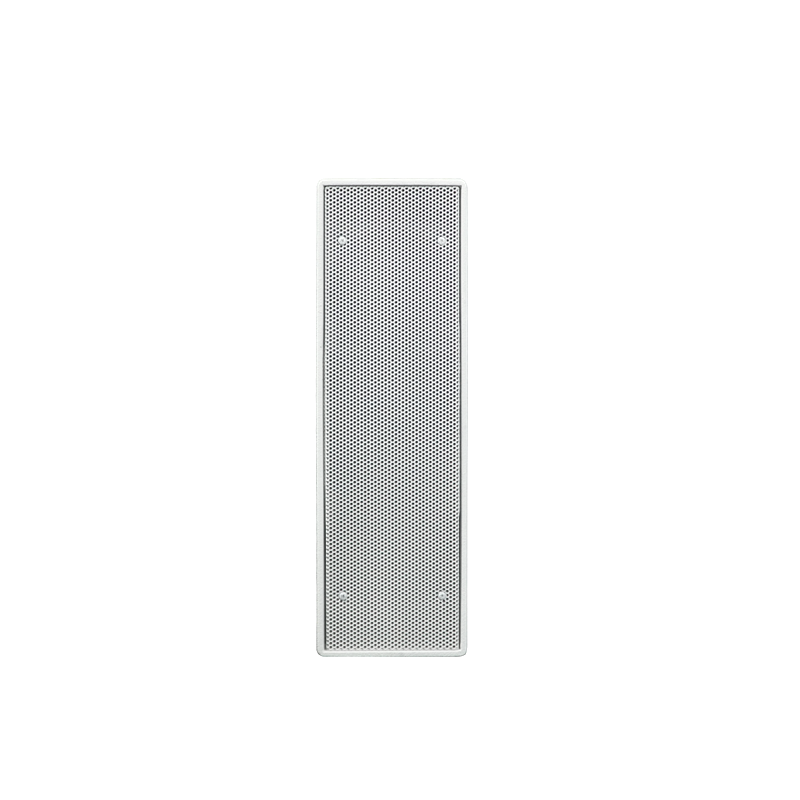

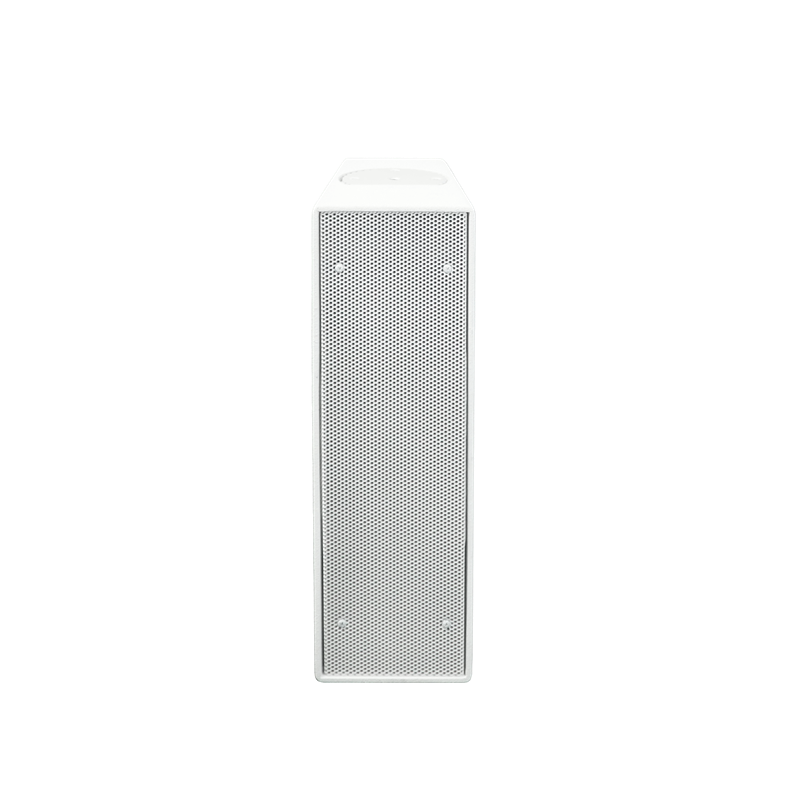

White version availableThis product is available for purchase in black or white.
IP32 RatingThe Product is protected from tools and wires larger than 2.5mm in diameter, and it is also protects against water spray at an angle less than 15 degrees from vertical.
Product code: 1030400890
Technical Data
Speaker Type
Passive 2-way Speaker
Acoustical data
RMS Power
120 W
Peak Power
480 W
Frequency Response [-6 dB]
85 Hz - 20,000 Hz
Impedance
8 Ohm
Sensitivity 1W@m
94.5 dB
Max SPL
121.5 dB
HF
1x 1", 1.4" v.c.
LF
2x 5", 1" v.c.
Dispersion
100x60° [Rotatable Horn]
X-Over Frequency
1500 Hz (internal X-Over)
Input
Connections
Phoenix
Mechanics
Housing
Plywood, water-painted coating
Rigging points
2x M10 threaded nut (top and bottom)
IP rating
IP 32
Width
152 mm (6 in)
Height
485 mm (19 in)
Depth
240 mm (9.4 in)
Weight
7 kg (15.4 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
