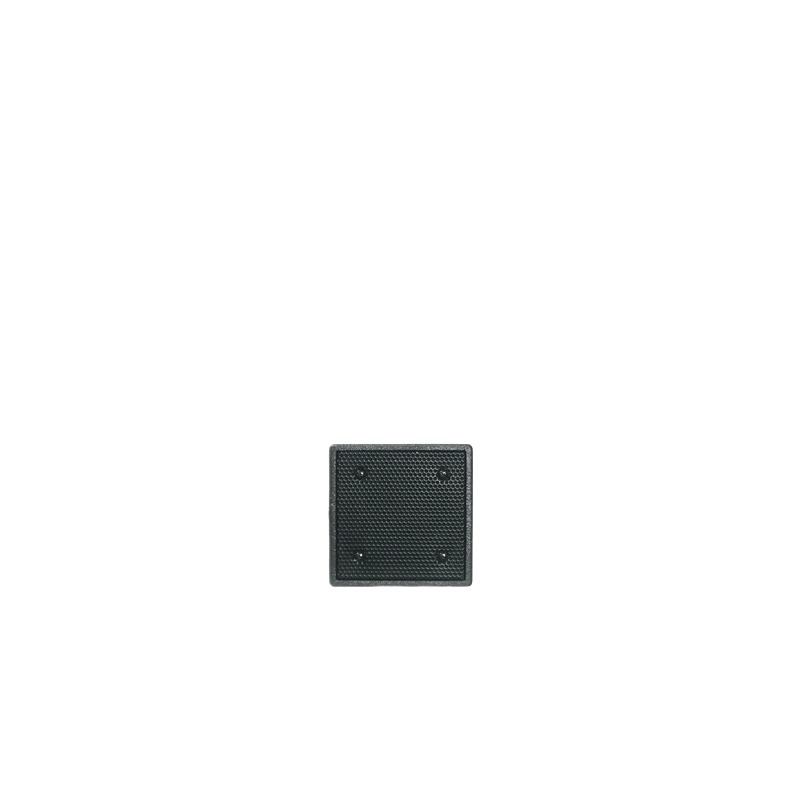

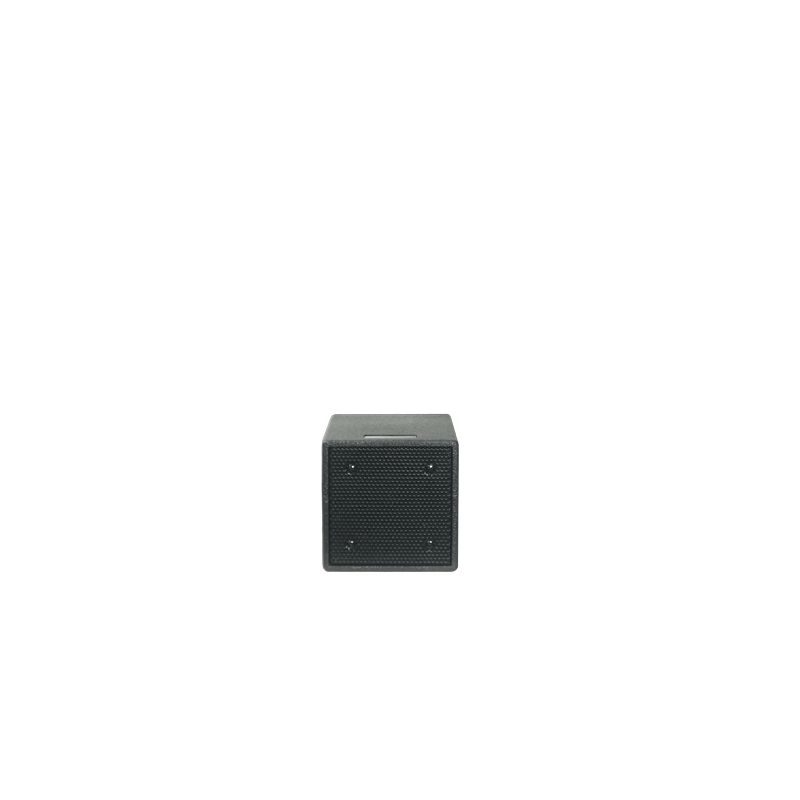

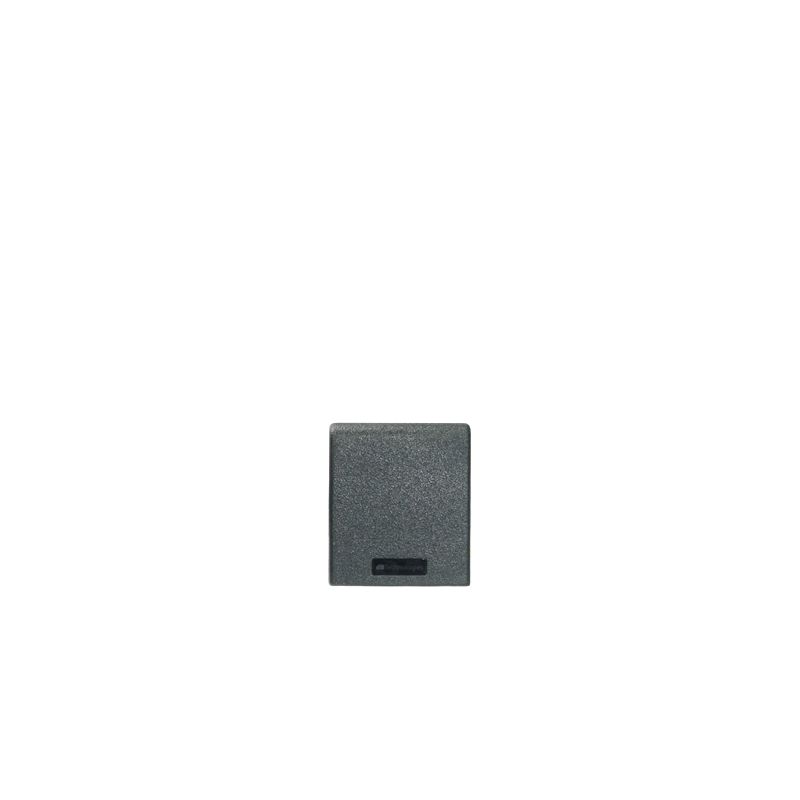

IS4T is the tiniest amidst IS series cube speakers designed for permanent installation.
Equipped with a 4" component, this is a simple compact cabinet that fit-in everywhere, essentially designed for high quality background music.

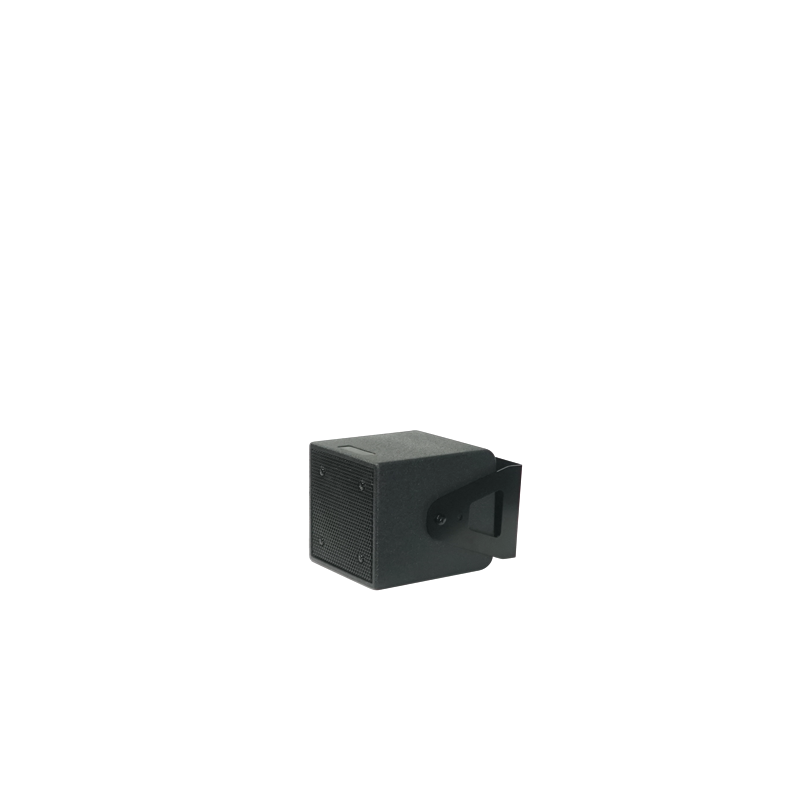

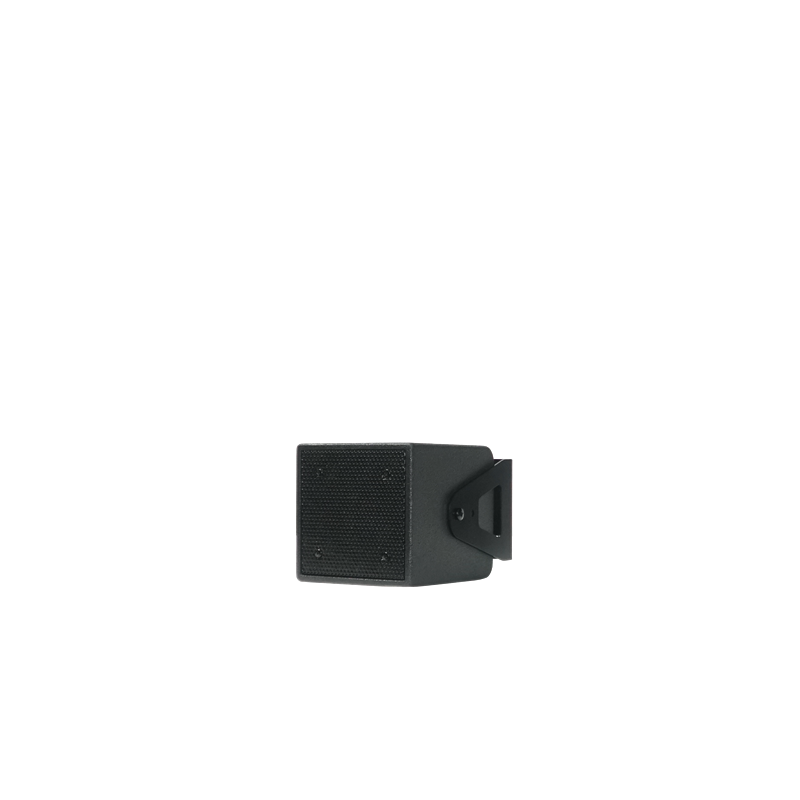

IS cube speakers install in a few minutes thanks to the dedicated bracket included in the package.

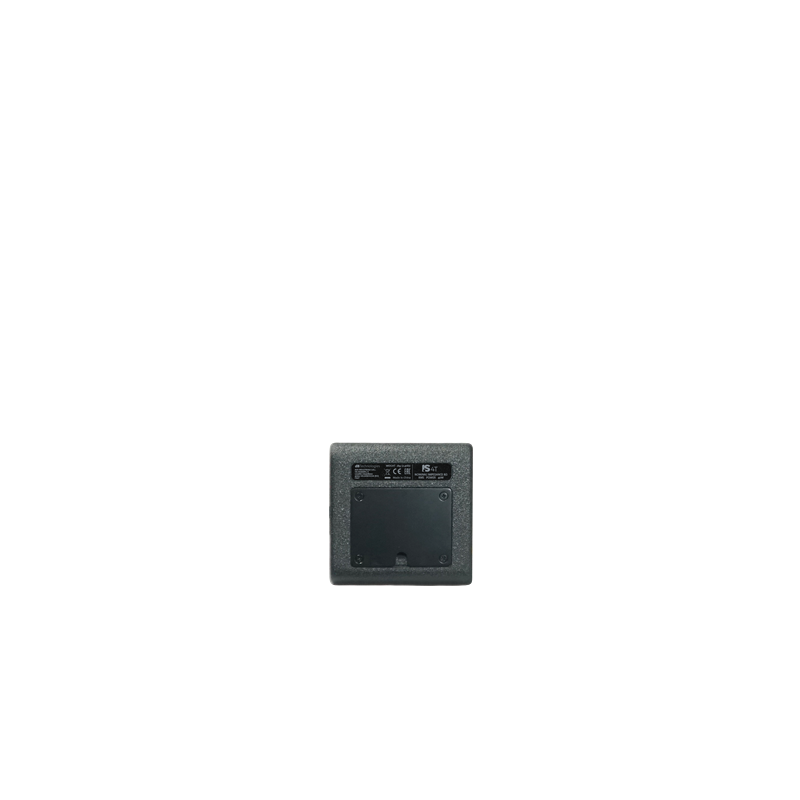

Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Read More
TECHNOLOGIES
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.

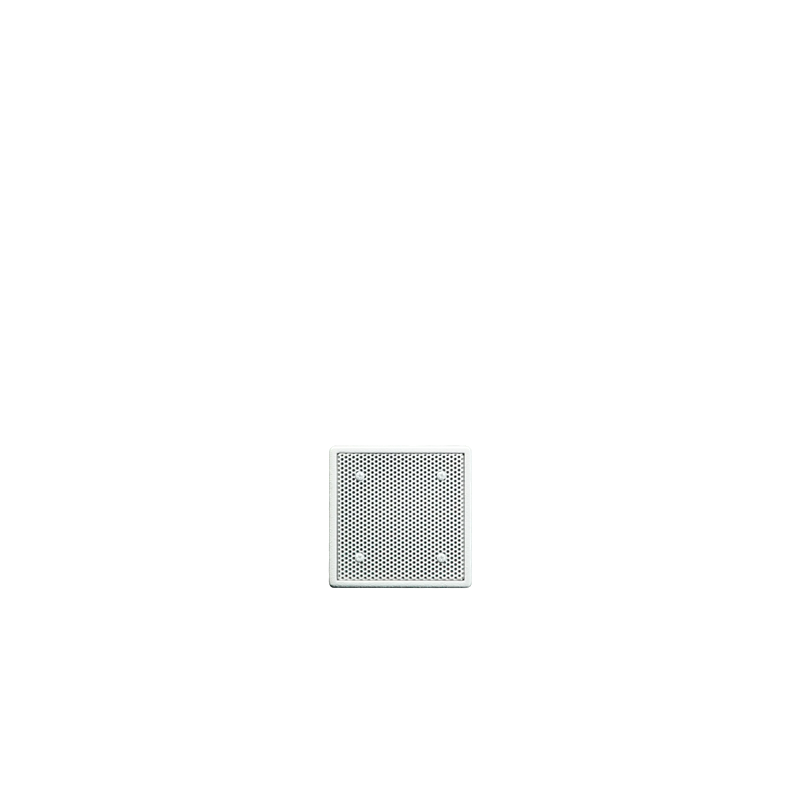

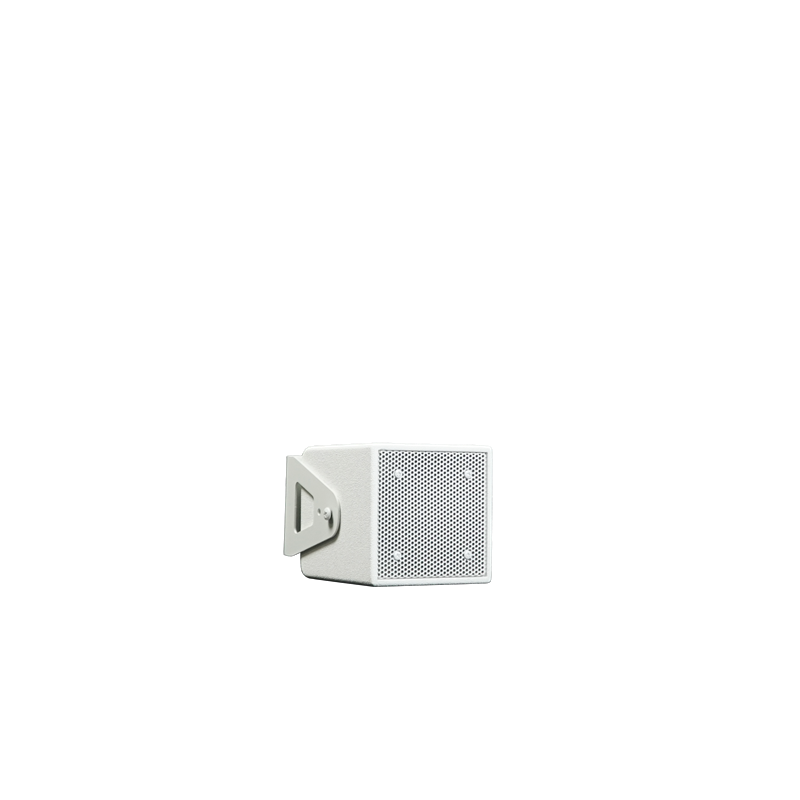

White version availableThis product is available for purchase in black or white.
IP32 RatingThe Product is protected from tools and wires larger than 2.5mm in diameter, and it is also protects against water spray at an angle less than 15 degrees from vertical.
Product code: 1030400860
Technical Data
Speaker Type
Passive Fullrange Speaker
Acoustical data
RMS Power
40 W
Peak Power
160 W
Frequency Response [-6 dB]
110 hz - 20,000 Hz
Impedance
8 Ohm
Max SPL
111 dB
LF
1x 4", 1 " v.c. Fullrange woofer
Dispersion
110x110°
Input
Connections
Phoenix
Mechanics
Housing
Plywood, water-painted coating
Rigging points
2x M6 threaded nut
Accessories
bracket included
IP rating
IP 32
Width
130 mm (5.1 in)
Height
130 mm (5.1 in)
Depth
150 mm (5.9 in)
Weight
2 kg (4.4 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
