IS5T

Point Sources

Download images

Point Sources

PASSIVE FULLRANGE SPEAKER

MAX SPL 116 dB

FREQUENCY RESPONSE [-6dB]: 95 Hz - 18,000 Hz

LF: 1x 5", 1 " v.c.

IP32 CERTIFIED

BRACKET INCLUDED

WEIGHT: 2.8 Gg (6.17 lbs)

Sales & Rental Network

IS5T

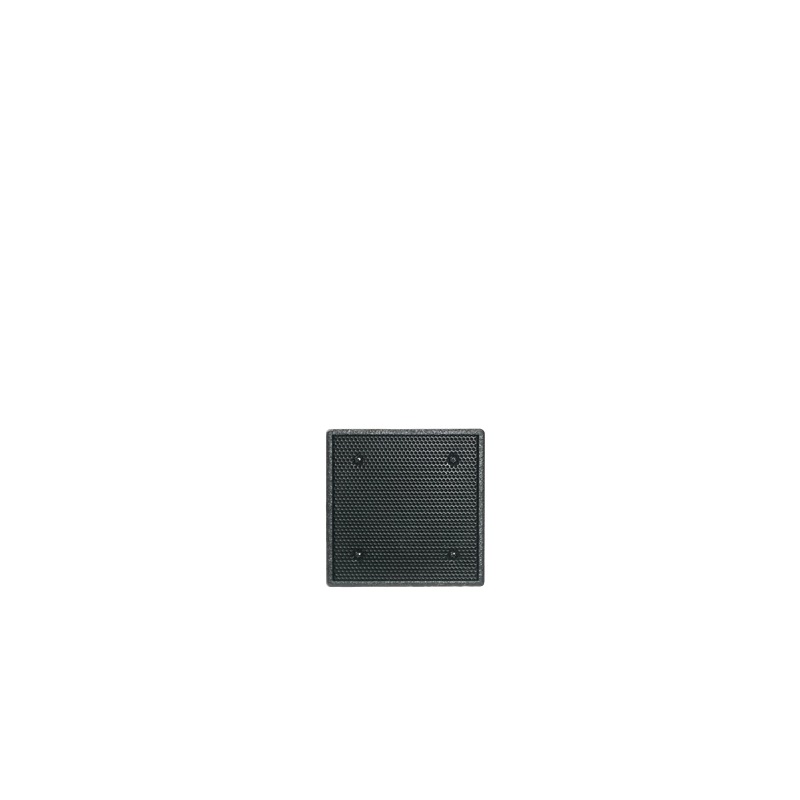

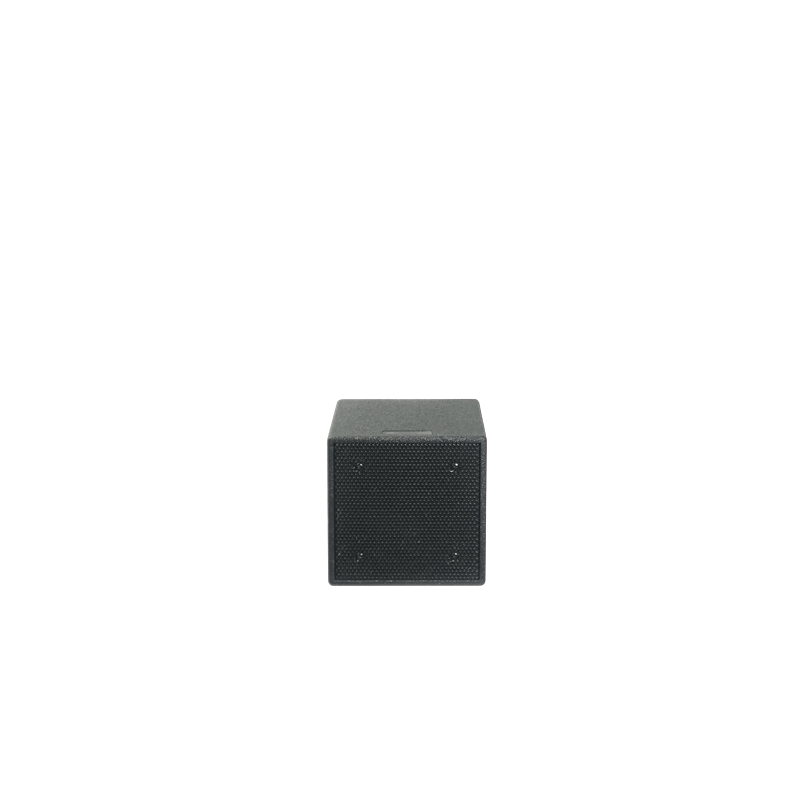

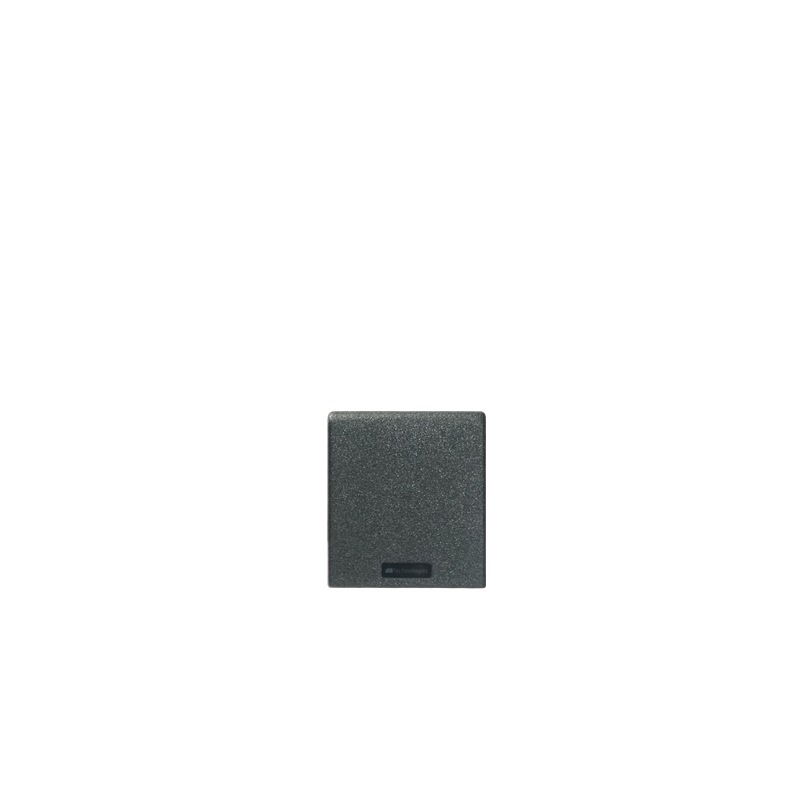

IS5T is a cube speaker designed for permanent installation.

Equipped with a 5" component, this is a simple compact cabinet that fit-in everywhere, essentially designed for high quality background music.

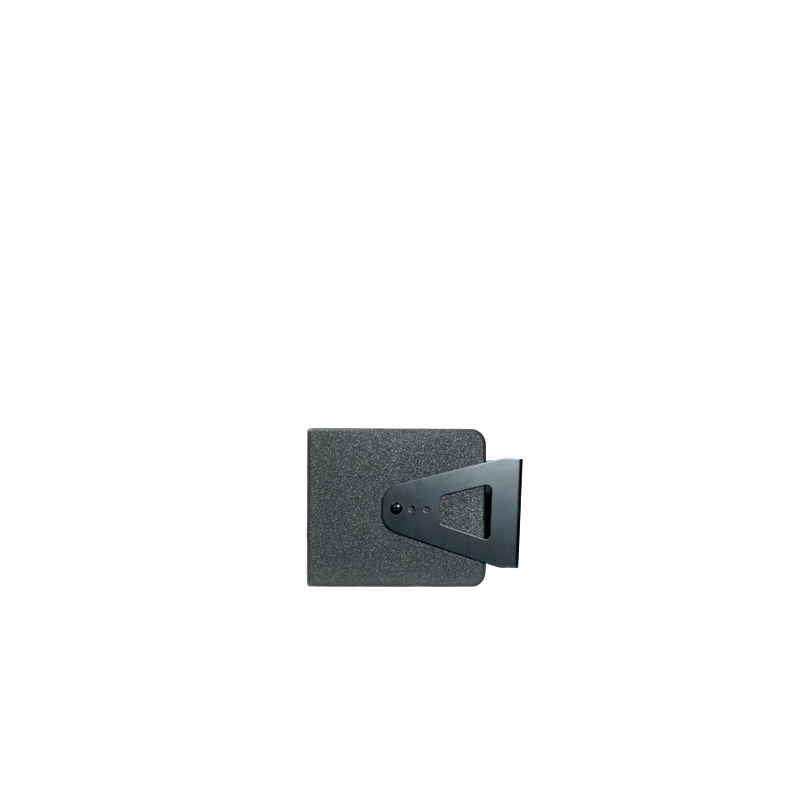

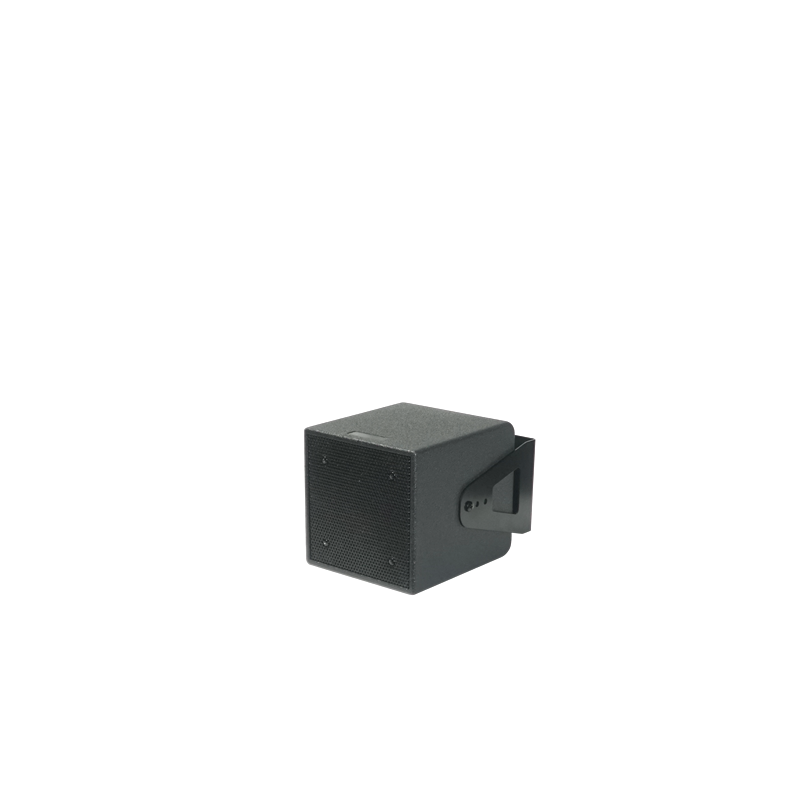

IS cube speakers install in a few minutes thanks to the dedicated bracket included in the package.

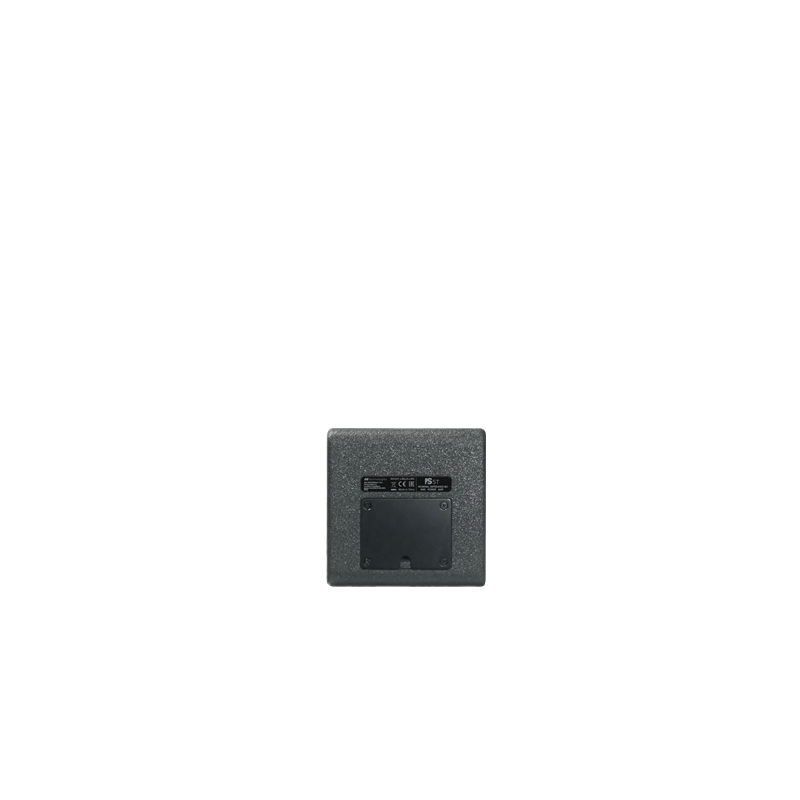

Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.

TECHNOLOGIES

EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.

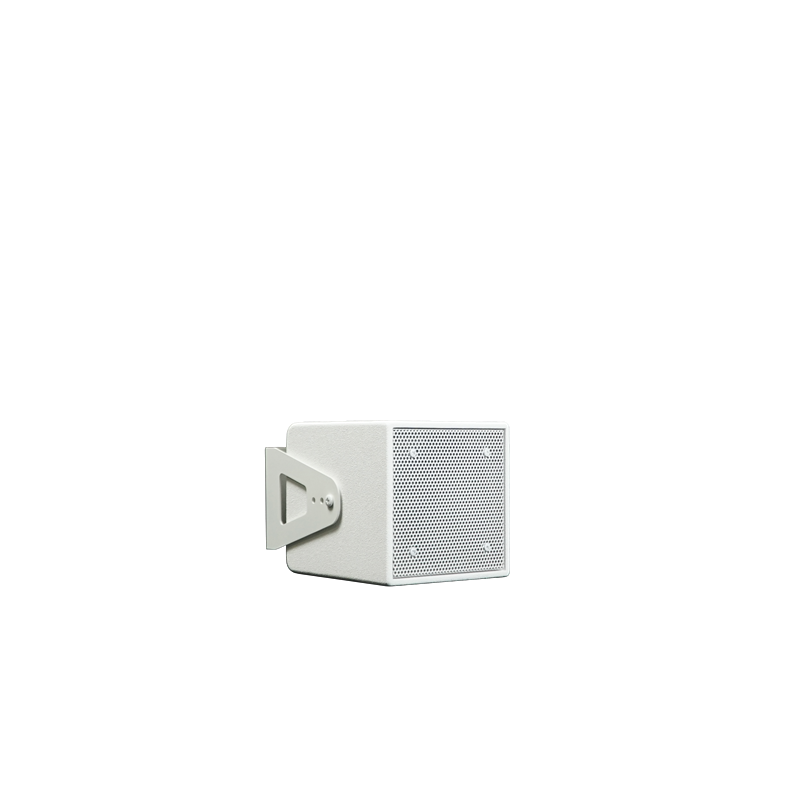

White version availableThis product is available for purchase in black or white.

IP32 RatingThe Product is protected from tools and wires larger than 2.5mm in diameter, and it is also protects against water spray at an angle less than 15 degrees from vertical.

Product code: 1030400870

Technical Data

Speaker Type

Passive Fullrange Speaker

Acoustical data

RMS Power

60 W

Peak Power

240 W

Frequency Response [-6 dB]

95 Hz - 18,000 Hz

Impedance

8 Ohm

Sensitivity 1W@m

92 dB

Max SPL

116 dB

1x 5", 1 " v.c. Fullrange woofer

Dispersion

110x110°

Input

Connections

Phoenix

Mechanics

Housing

Plywood, water-painted coating

Rigging points

2x M6 threaded nut

Accessories

bracket included

IP rating

IP 32

Width

160 mm (6.3 in)

Height

160 mm (6.3 in)

Depth

180 mm (7 in)

Weight

2.8 kg (6.17 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
