DEM 30 in-ear monitoring system works in the 823-832 and 863-865 MHz frequency bands with 96 UHF channels available.
The system is comprised of a transmitter and a beltpack receiver plus a comfortable and reliable headset mic providing musicians with the most natural and detailed audio performance.
An LCD display on both transmitter and receiver ease set up operations showing audio levels, signal reception, battery charge level (up to 12 hours with standard AA batteries), frequency GROUP and CHANNEL and Stereo Mode when selected. Transmitter also displays Tone, Limiter and Mix indicators and features a headphone output as well as sensitivity controls to monitor the signal sent to musicians.
Moreover, performers are allowed to set STEREO or MONO modes as well as choose their favourite EQ directly on the bodypack receiver.
Read More
TECHNOLOGIES
Technical Data

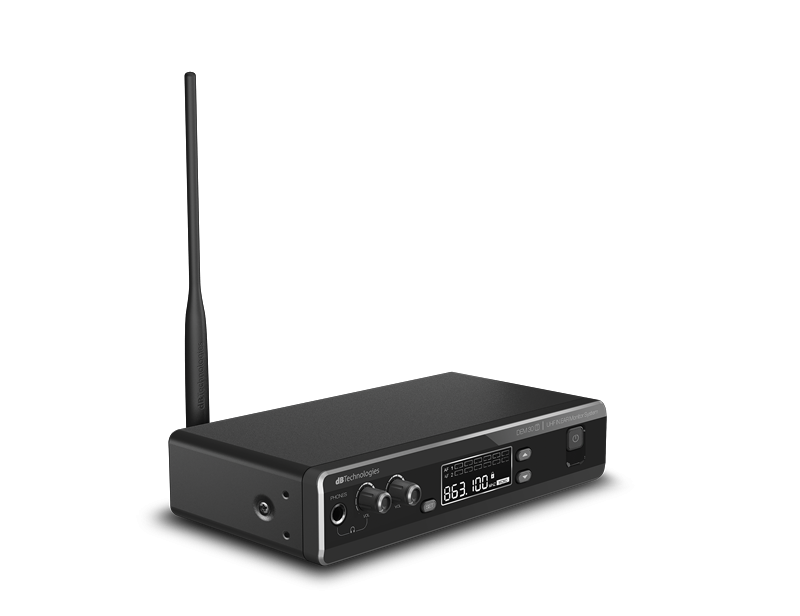

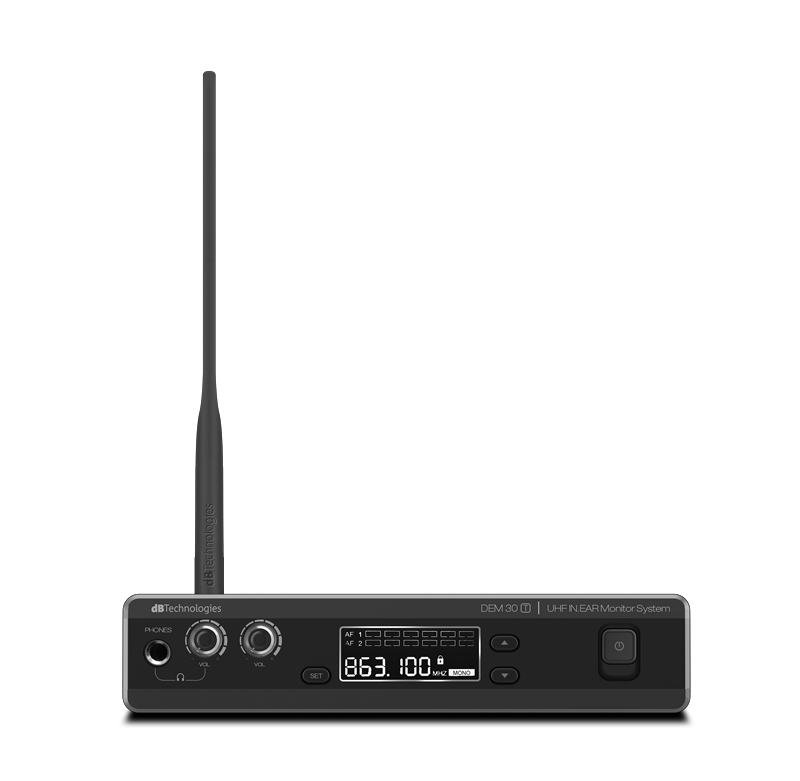

Transmitter DEM30T
Available Frequency Bands
823-832 MHz / 863-865 MHz
Channels
96 (8 groups with 12 channels each)
Frequency Response
60 Hz - 15 kHz (+-3dB)
RF Power
10 mW
Front Panel Controls
Headphone Volume
Input Level
SET
CH up/ CH down
Rear Panel Controls
PAD Swotch
Dimensions
212x44x196mm
8.34x1.73x1.73x3.77 in
Weight
560 g
19.7 oz

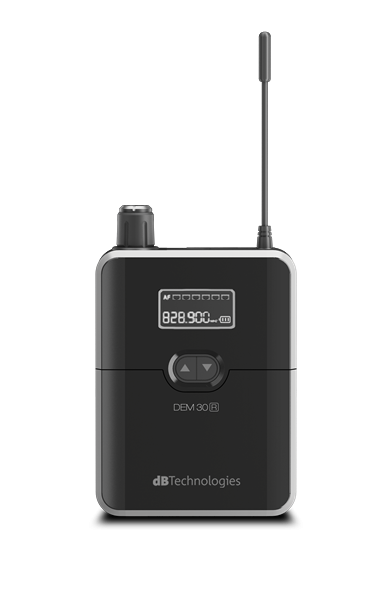

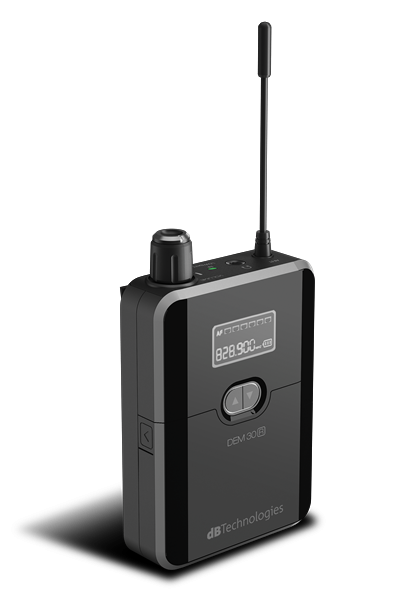

Bodypack Receiver DEM30R
Frequency Response
50Hz-15Hz (+-3dB)
Output
Stereo 3.5 mm mini-jack
Controls
Volume
CH Up
CH Down
Esc
SET
Power Supply
2 AA LR6 1.5V batteries
Dimensions
64x90x23 mm
2.51x0.91x3.54 in
Weight
95 g
0.09 oz

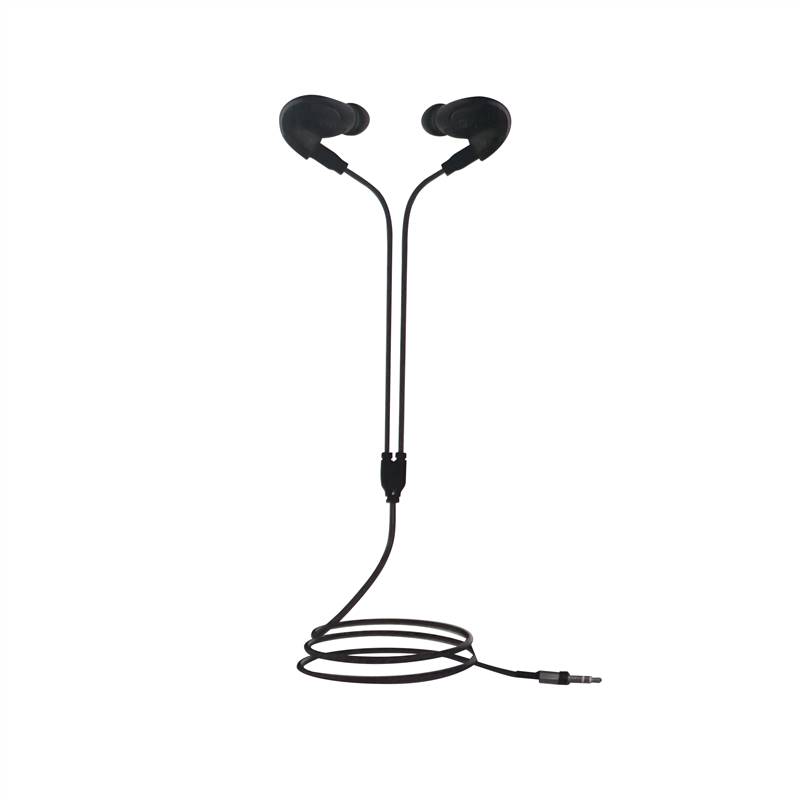

Earphones DEM30E (included)
Impendance, sensitivity
16 Ohms , 92.5 dB [1 kHz]
Earplugs
3 pairs, interchangeables
Cable Length
1300 mm
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
