With a height of just 44 cm, it can be flown above DVA T4 modules to keep the rig's footprint inconspicuous.
The S09 comes with two features that make it the perfect base for a high-quality satellite system, for example, when paired with the DVX D10.
One is an integrated active stereo crossover with two cutoff frequencies to choose from, 90Hz and 120Hz. The other is a phase inversion switch.

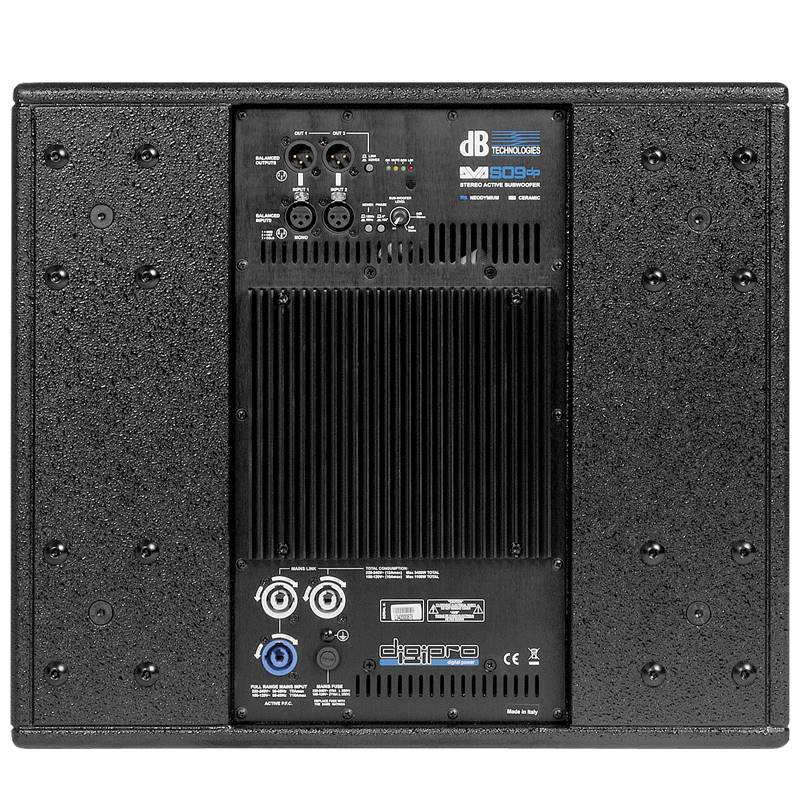

One PowerCon socket connects to the mains power supply, while two PowerCon outputs connect satellites.
Read More
TECHNOLOGIES
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.

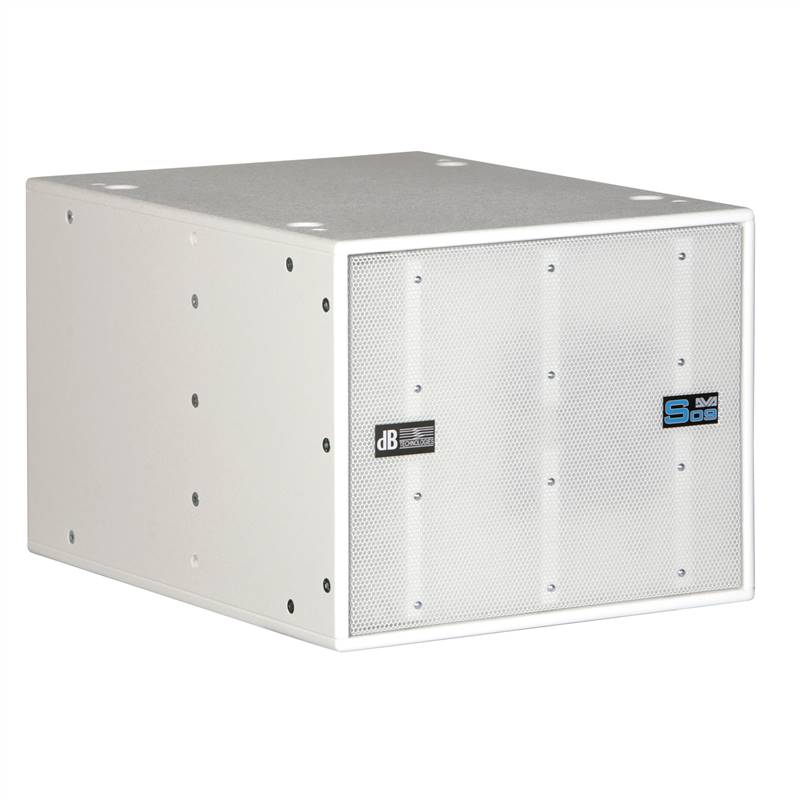

White version availableThis product is available for purchase in black or white.
Technical Data
Speaker Type
Active Bandpass Subwoofer
Acoustical data
Frequency Response [+/- 3dB]
45 - 120 Hz
Max SPL
134 dB
Directivity
Omnidirectional
LF
15 "
Voice Coil LF
4 "
Amplifier
Amp Technology
Digipro®
Amp Class
Class D
LF Amp
1000 W RMS
Cooling
Convection
Processor
Controller
Analog (Stereo)
Phase
0, 180 °
Limiter
RMS, Peak, Thermal
Delay Option
NO
Crossover Frequency LF-MF
90, 120 Hz
LF-Xover out slope
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Rectangular
Color
Black, White
Handles
2x Side
Pole Mount
1x M20
Rigging Points
2xPick Points on top to fix
DRK10/20 rigging frames
Accessory
Wheels 100mm, Dust Cover, Rain Cover
Width
515 mm (20.6 in)
Height
440 mm (17.6 in)
Depth
720 mm (28.8 in)
Weight
37.5 kg (82.67 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
