FLEXSYS F8

Point Sources
Point Sources

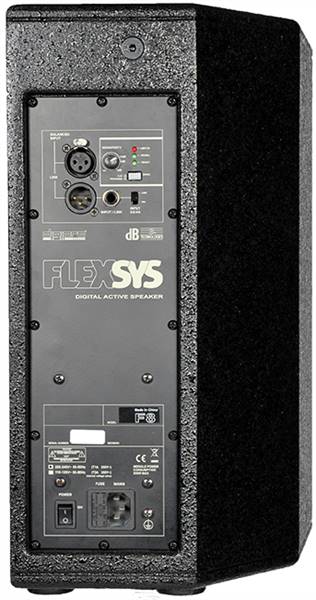

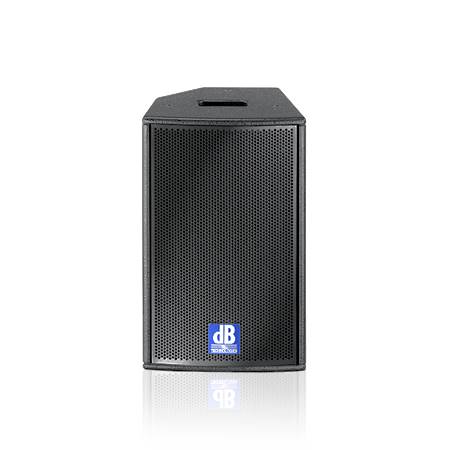

The Flexsys F8 is a two-way mid-/high-range unit designed especially for use in a fully active configuration with added subwoofers.

Loaded with an 8” woofer and a 1“ driver, it delivers clear, richly detailed response across the midrange and top end.
Read More

TECHNOLOGIES

Asymmetrical Horn
Asymmetrical HornThe dBTechnologies asymmetrical horn design delivers similar effective coverage for smaller applications. The high-frequency horn is narrower on top to bundle sound and throw it over greater distances. It flares out at the bottom to achieve a wider pattern of throw. This compensates for high frequency loss as sound travels further from the source) and distributes the signal more uniformly across all audience areas.
Multifunctional Housing

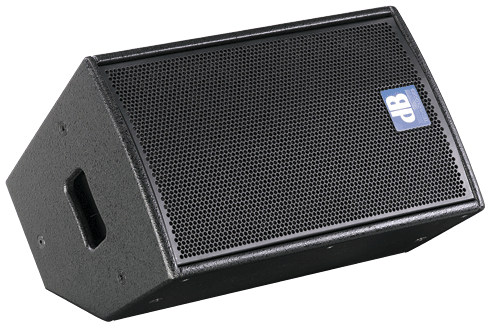

Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Neodymium Transducers
Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.
Preset System
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Technical Data
Speaker Type
2-Way Active Speaker

Acoustical data
Frequency Response [-10dB]
75 - 20.000 Hz

Frequency Response [+/- 3dB]
90 - 19.000 Hz

Max SPL
121 dB

HF
1 "

Type HF
Neodymium compression driver

Directivity
90/40 x 60 °

Horn
Asymmetrical CD Horn

LF
8"

Amplifier
Amp Technology
Digipro®

Amp Class
Class D

Power PRG
400 W

Peak Power
800 W

Processor
Controller
DSP 24bit/48kHz

System Presets
Flat, Processed

Limiter
Dual Active

Peak, RMS, Thermal

Crossover Frequency MF-HF
2100 Hz

Slope MF-HF
24 dB/Octave

Mechanics
Housing
MDF

Angles Up
Monitor use 40 °

Width
260 mm (10.4 in)

Height
420 mm (16.8 in)

Depth
260 mm (10.4 in)

Weight
9.5 kg (20.94 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
Brochure_FLEXSYS-Series Catalogues PDF 1.13 MB English 0001-01-01
FLEXSYS series-MAN rev2 Manual PDF 8.67 MB English 2017-09-01
