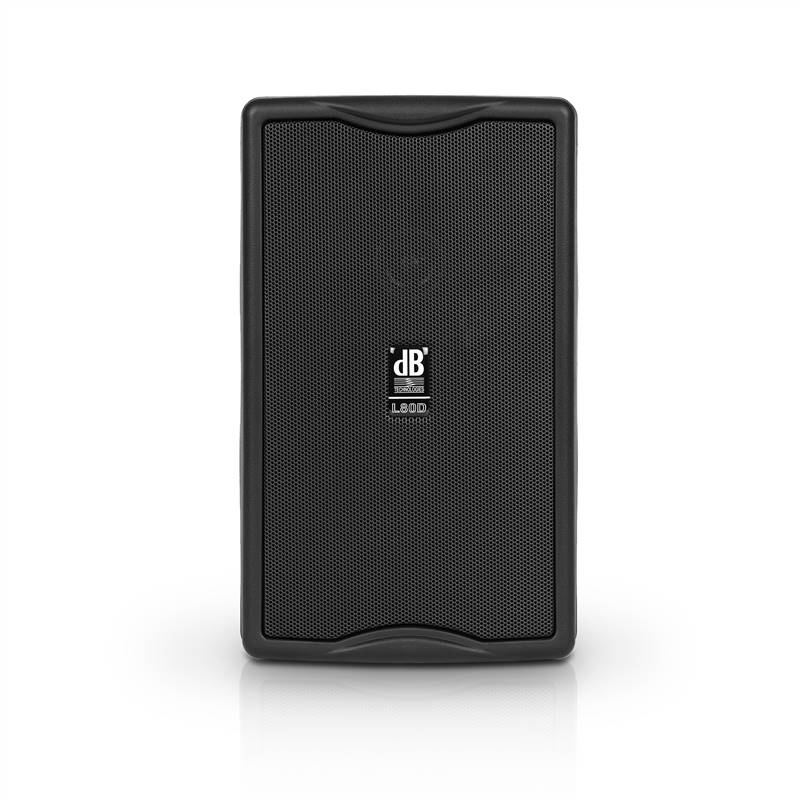

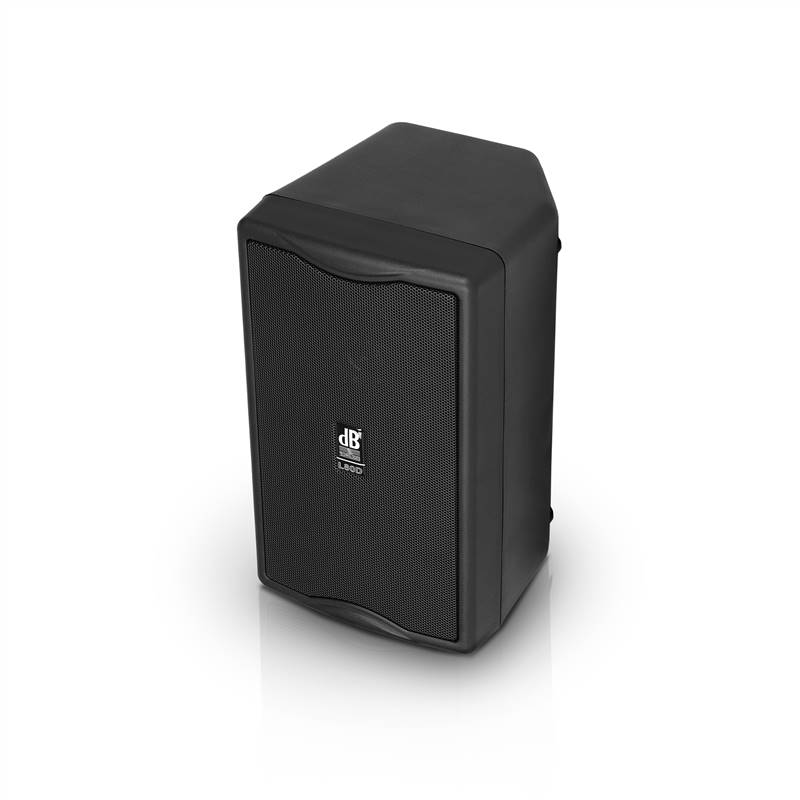

MINIBOX L80D collects the technological
heritage of the renowned MINIBOX L160D
in a smaller and handy format.
Technically evolved
The 80W Class-D Digipro® power amp with
proven reliability and efficiency packs huge
performance and operating efficiency into a
lightweight solution that takes a very small
footprint. The MINIBOX L80D features a powerful
56bit DSP with 24bit/48kHz AD/DA conversion,
which allows the user to choose directly from the box the most adequate equalization for the
desired use, by optimizing the performance
without the need of external processors.
Read More
TECHNOLOGIES
Coaxial SpeakerThese coaxial speakers deliver an extraordinary sound quality that defies the compact design of their housings. Engineered for precise directivity and uniform throw patterns, they provide the same satisfying audio experience from every listening position, with far greater resistance to Feedback.
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Technical Data
Speaker Type
2-Way active speaker
Acoustical data
Frequency Response [-10dB]
90 Hz - 20.000 Hz
Max SPL
112 dB
HF
1"
Type HF
Dome Tweeter, coaxial
Directivity
85 x 75 °
LF
2 woofer 4" +dome tweeter (coaxial)
1 woofer 4"
Amplifier
Amp Class
Class D
Amp Technology
Digipro®
Power PRG
80 W
Cooling
Convection
Processor
Controller
DSP 24bit/48kHz
System Presets
8
Limiter
Dual Active Peak, RMS, Thermal

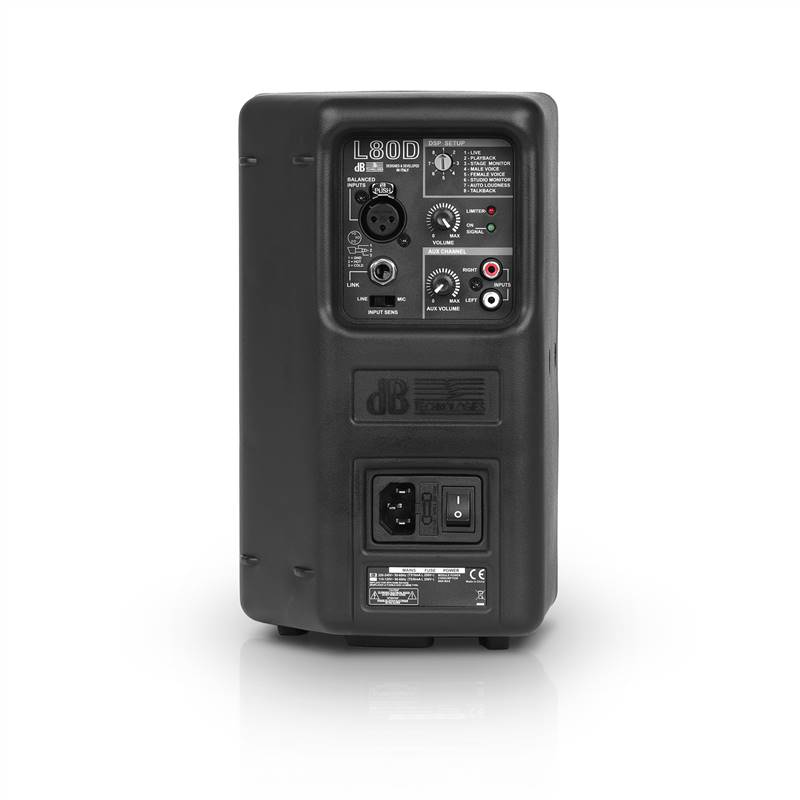

Input
Signal Input
1x XLR Line In/Mic
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
Microphone Input
YES
Signal Output
1x 6.3mm phone jack
Power Socket
VDE
Voltage Range
110-120 - 220-240 V
Mechanics
Housing
Polyporpylene PP
Angles Up
Monitor use 60°
Rigging Points

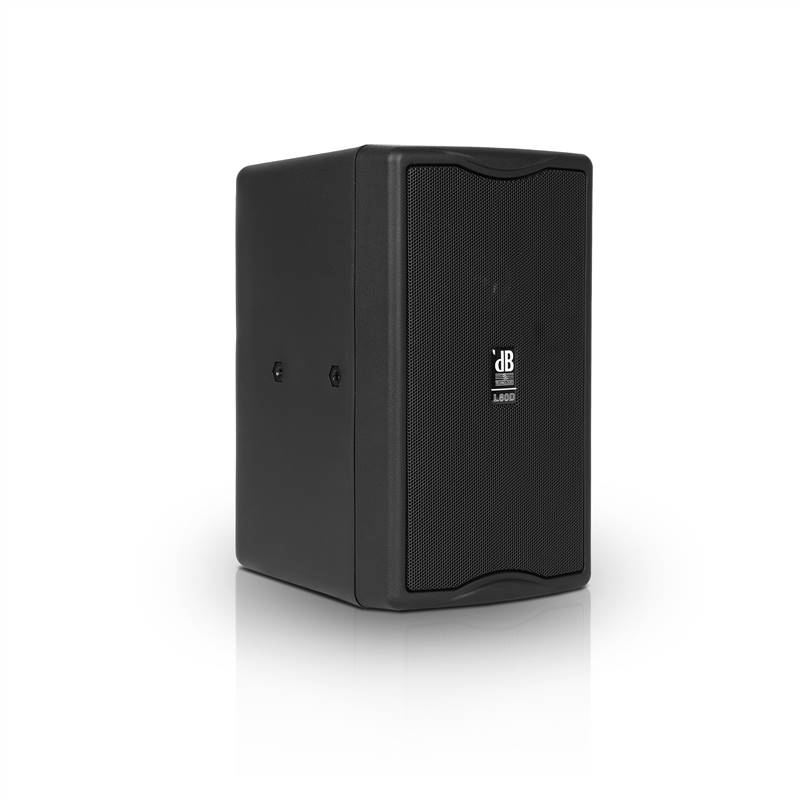

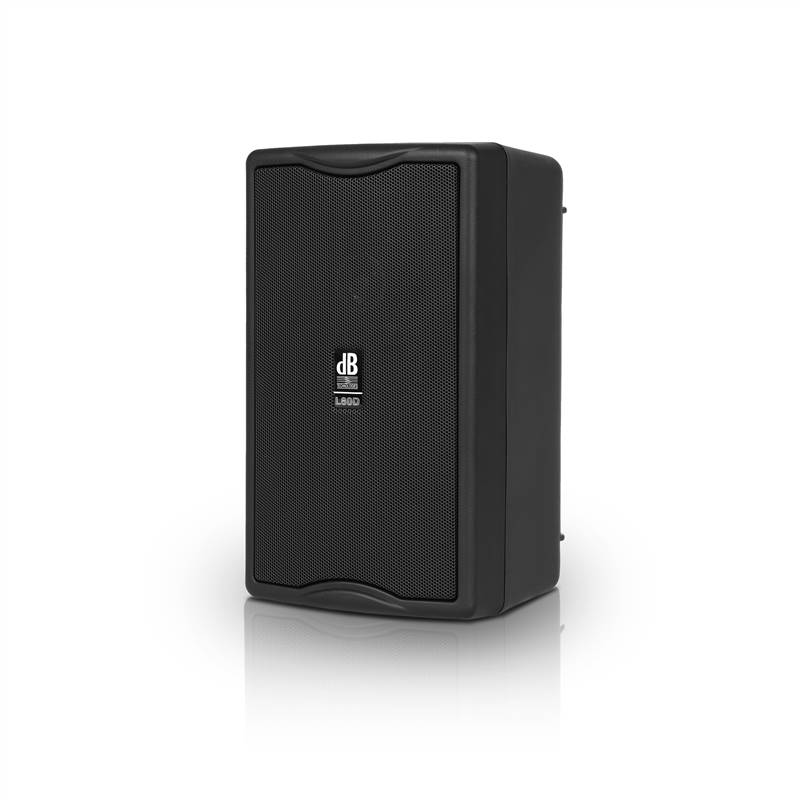

2x M5 on side

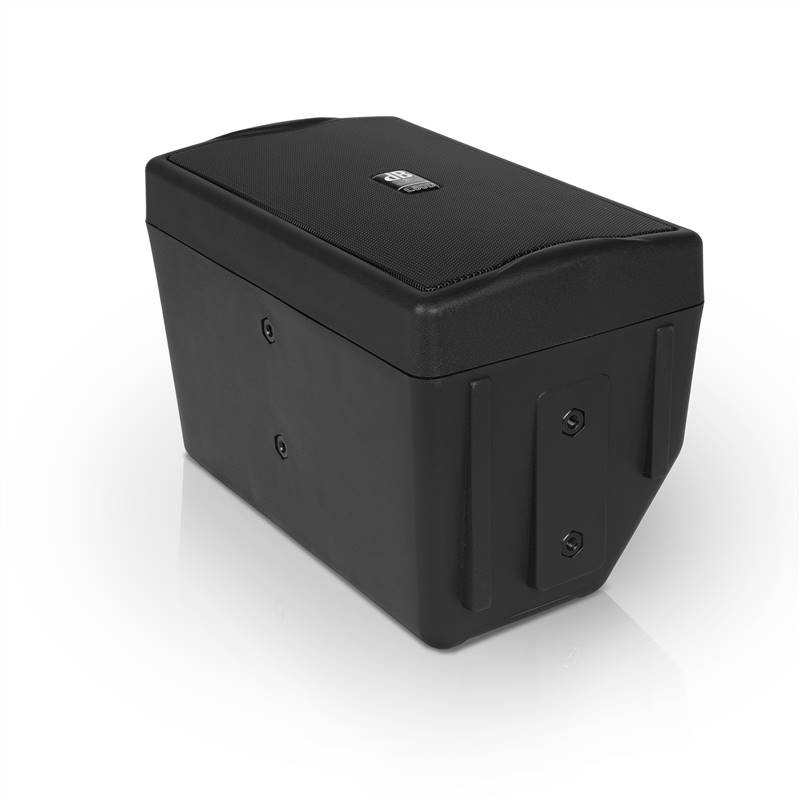

2x M5 on bottom
Accessory

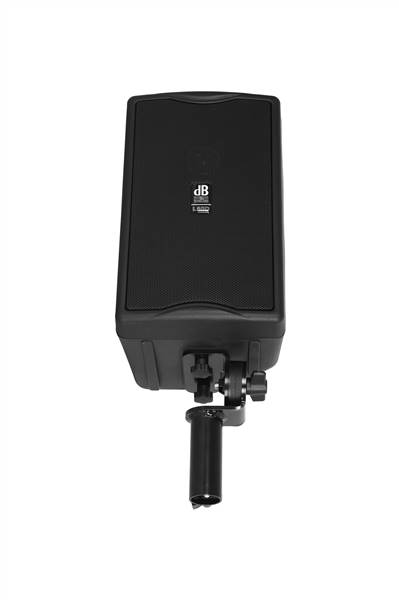

WB03, WB 11, SN120, SN130, SA25
Width
155 mm (6.10 in)
Height
265 mm (10.43 in)
Depth
180 mm (7.09 in)
Weight
3.75 kg (8.27 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
