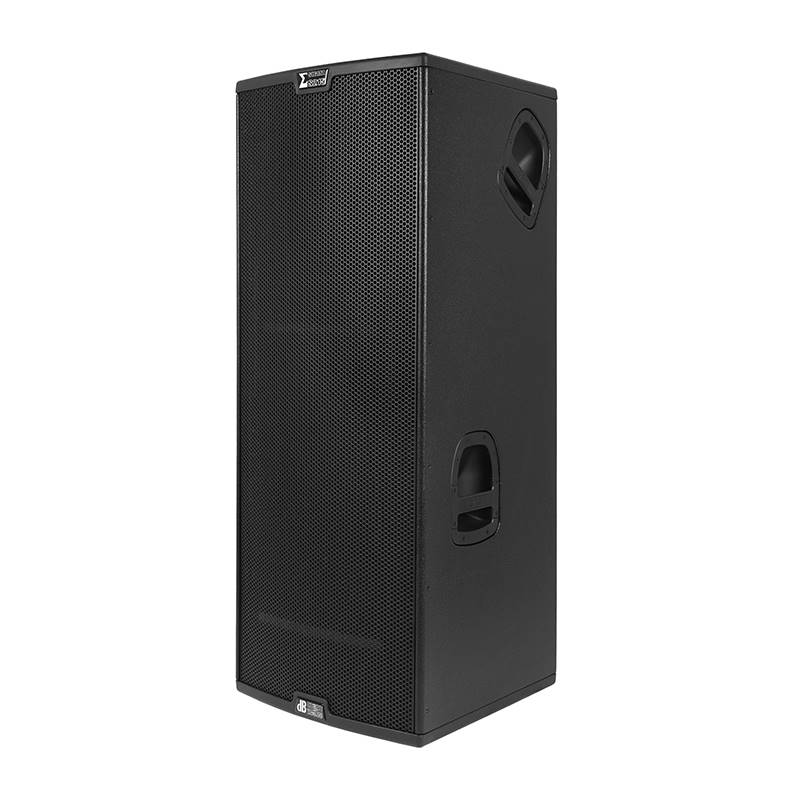

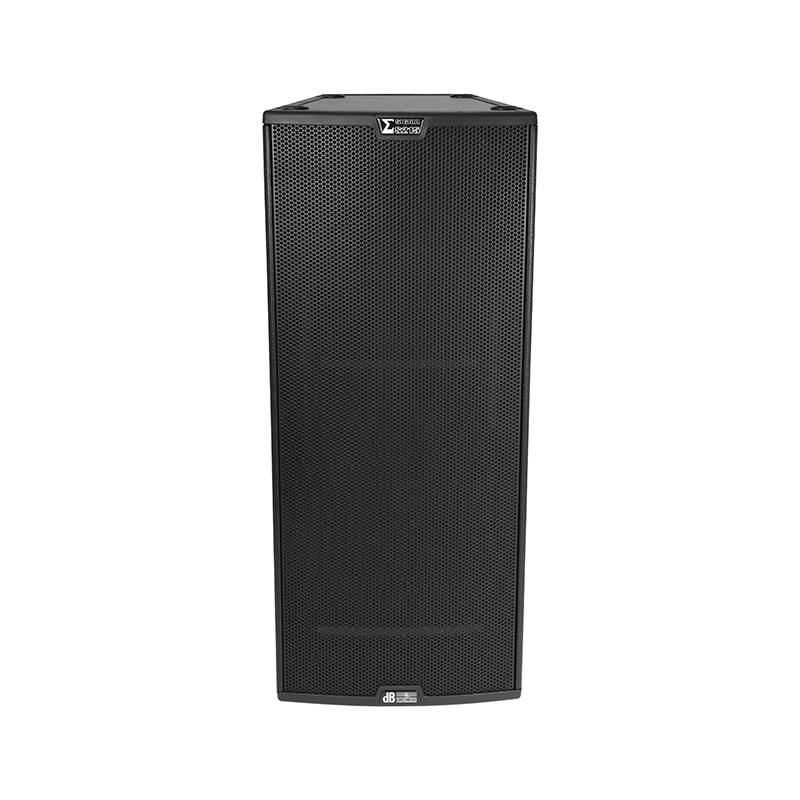

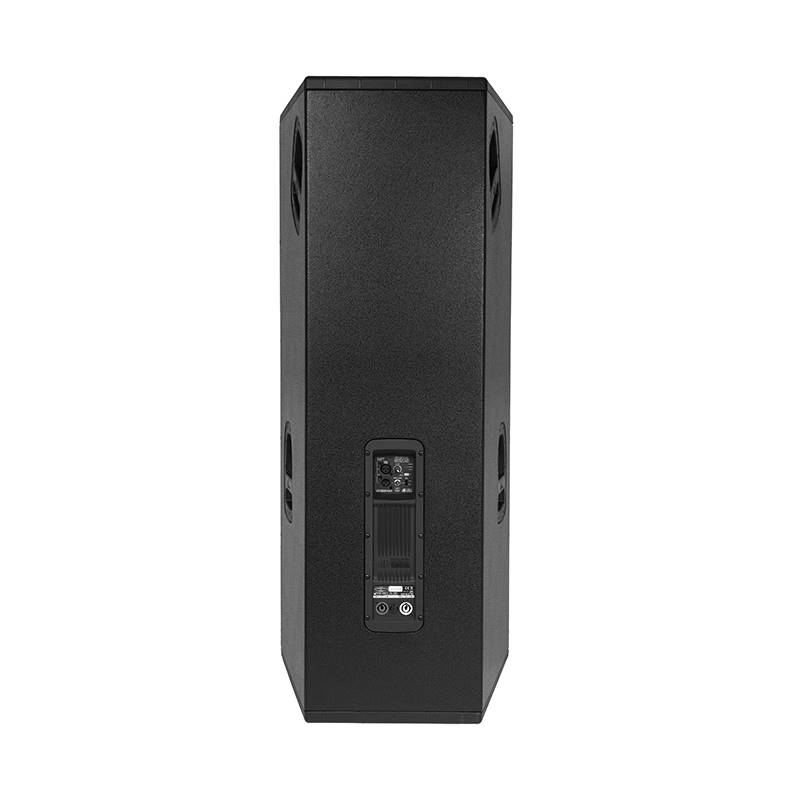

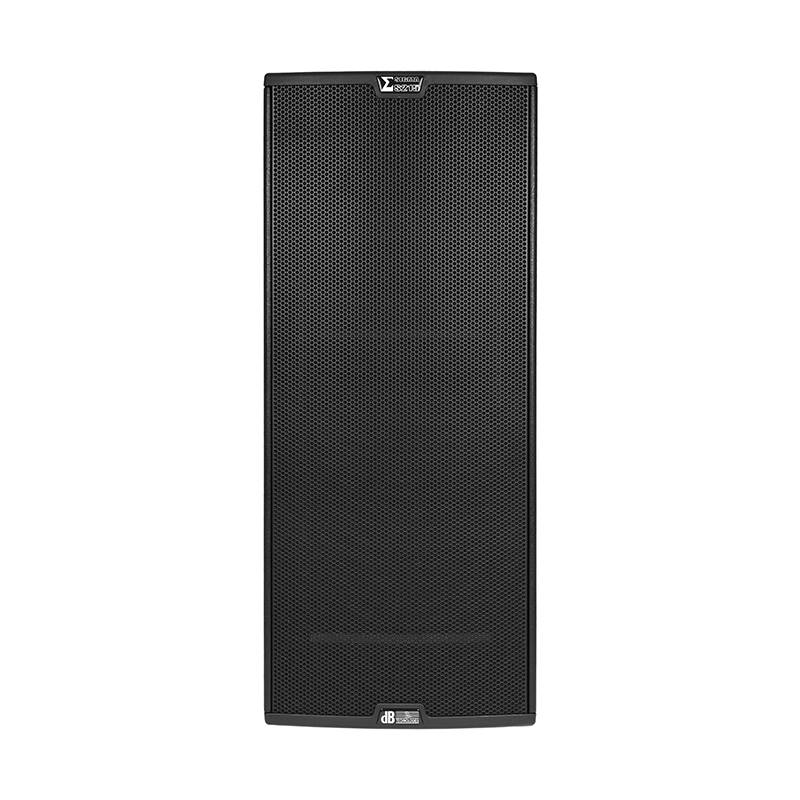

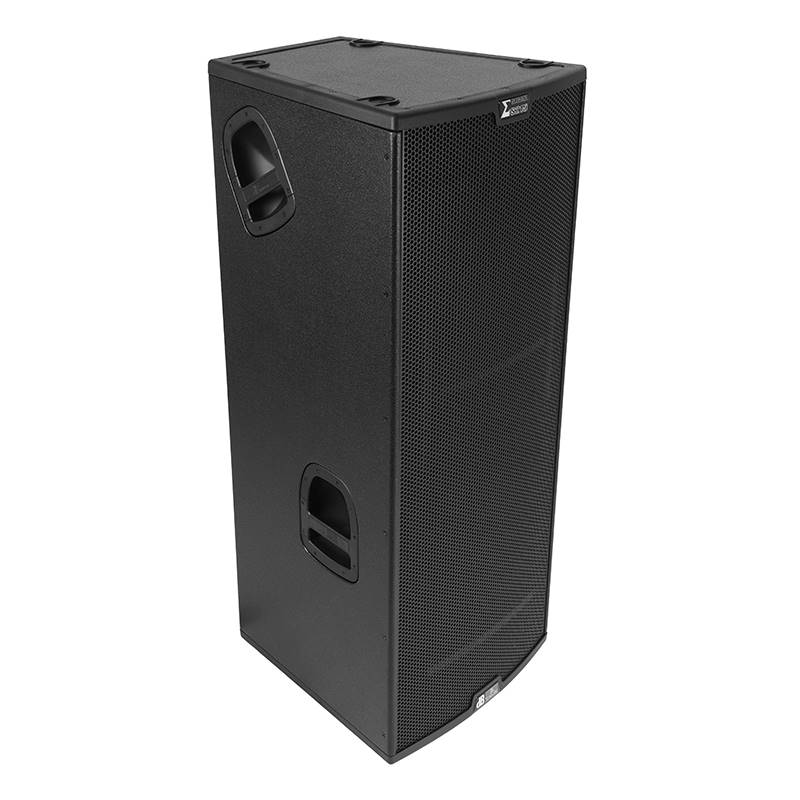

Quasi 3-Way Active Speaker 2 x 15“/1.4“, 1400 W Peak Many venues demand high SPL and low-ranging response.
However, a fullrange enclosure is often the only viable option for some of these applications.
Loaded with two 15“ woofers designed to handle considerable loads, the S215 is the solution of choice for such scenarios.
Read More
TECHNOLOGIES
Digipro® G2System of digital amplification engineered by dBTechnologies. Based on the previous Digipro project, the newest G2 versions' efficiency has been improved by cutting down on consumption and heating. The introduction of a 'new avant-garde' component, a better s/n relation and a lighter weight, confer a superior dynamism to the new Digipro G2 digital speakers.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Technical Data
Speaker Type
Quasi 3-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
45 - 20.000 Hz
Max SPL
137 dB
HF
1.4 "
Type HF
Titanium Compression driver
Voice Coil HF
2.8"
Directivity
60 x 40 °
Horn
CD Horn
LF
2x15" (with phase plug)
Voice Coil LF
3"

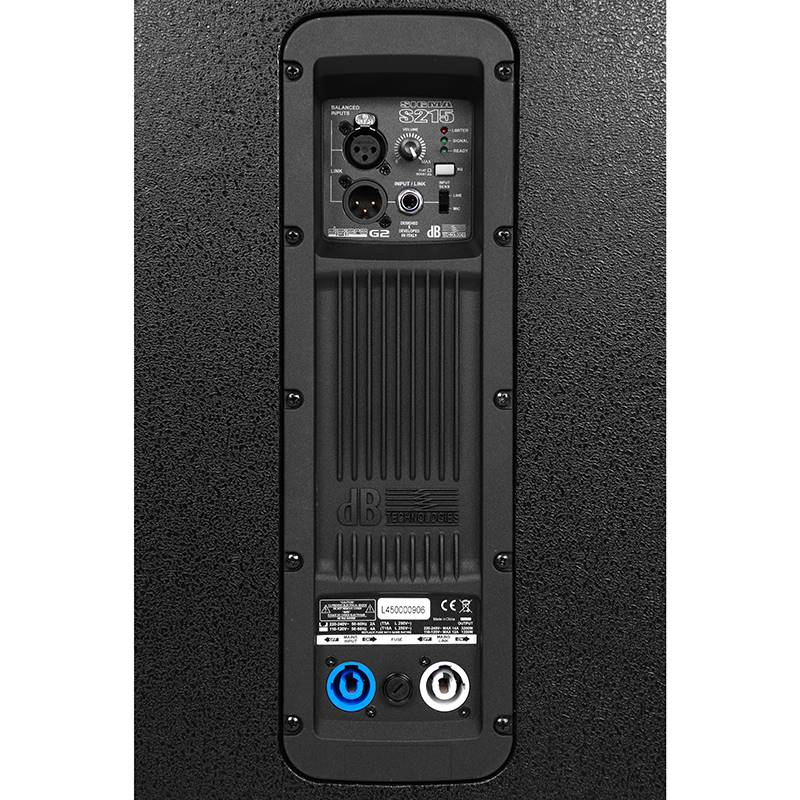

Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
PRG Power
1400 W
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Boost
Limiter
Dual Active
Peak, RMS, Thermal
Crossover Frequency MF-HF
1100 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex with H.E.T coating, reinforced
Width
509 mm (20.36 in)
Height
1215 mm (48.6 in)
Depth
533 mm (21.32 in)
Weight
50 kg (110.23 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
