The new SIGMA S218 is an active bass reflex subwoofer that comes as the perfect matching for SIGMA S115 F, ensuring the best behaviour as a full-range cluster both for live and installed applications.
It is equipped with two 18" woofers (4" voice coil) and a CLASS D Digipro G3 2700 W PRG Power. The double input and output allows a mono or stereo configuration.

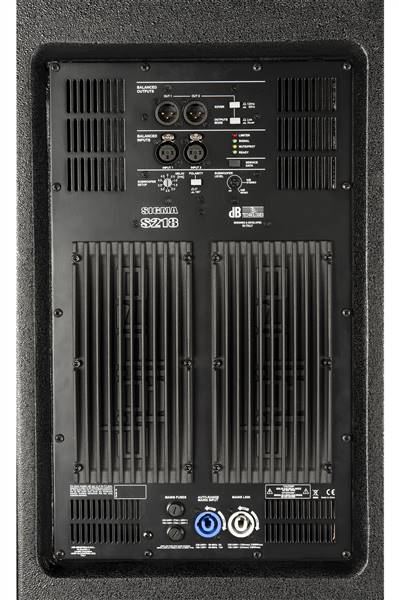

On-board Phase and Delay controls allows to precisely configure the system in every situation to make the most of a powerful yet precise PA system.
Read More
TECHNOLOGIES
Digipro® G2System of digital amplification engineered by dBTechnologies. Based on the previous Digipro project, the newest G2 versions' efficiency has been improved by cutting down on consumption and heating. The introduction of a 'new avant-garde' component, a better s/n relation and a lighter weight, confer a superior dynamism to the new Digipro G2 digital speakers.
Technical Data
Speaker Type
Active Bassreflex Subwoofer
Acoustical data
Frequency Response [-10dB]
42 - 120 Hz
Max SPL
138 dB
Directivity
omnidirectional
LF
2x 18 "
Voice Coil LF
4 "
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
PRG Power
2700 W
Processor
Controller
Analog/Digital
Limiter
Peak, RMS, Thermal
Crossover Frequency MF-HF
90-100 Hz (Switchable)
LF-Xover out slope
24 dB/Octave
Input
Signal Input
2x XLR
Signal Output
2x XLR X-Over Out/ Link Out
Mechanics
Housing
Plywood
Handles
4 (2x Side)
Pole Mount
M20 on top
Width
509 mm (20.04 in)
Height
1215 mm (47.83 in)
Depth
533 mm (20.98 in)
Weight
59.8 kg (131.84 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
