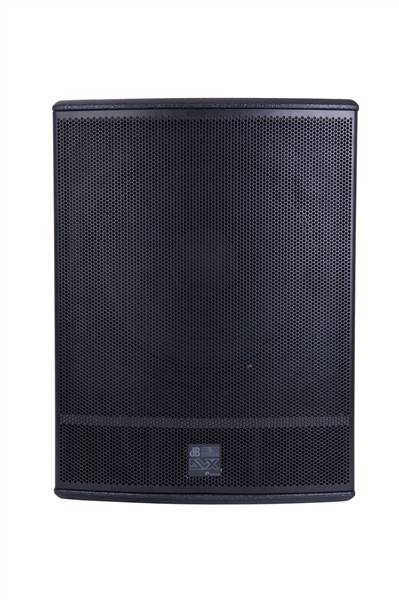

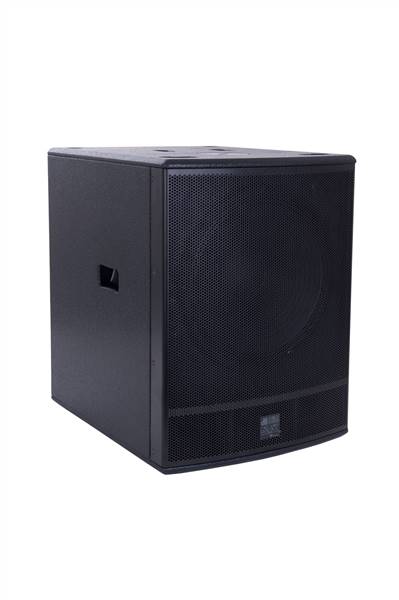

Thanks to its 15” high-quality woofer,
the impulse response is incredibly truthful, reproducing low-end frequencies
with extreme precision and providing a finely shaped sound image. Compact
dimensions combined with light weight and sturdy construction of this
subwoofer, make it a good choice whenever you need to boost low-end frequencies
without losing the advantages of portability.
Read More
TECHNOLOGIES
Technical Data
Speaker Type
Passive Subwoofer
Acoustical data
RMS Power
500 W
Peak Power
1000 W
Impedance
8 Ohms
Frequency Response [+/- 6dB]
40 - 200 Hz
Max SPL
132 dB
LF
15"
Voice Coil LF
3"

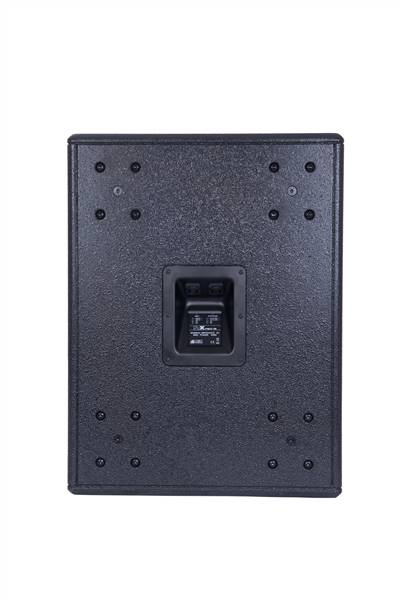

Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)

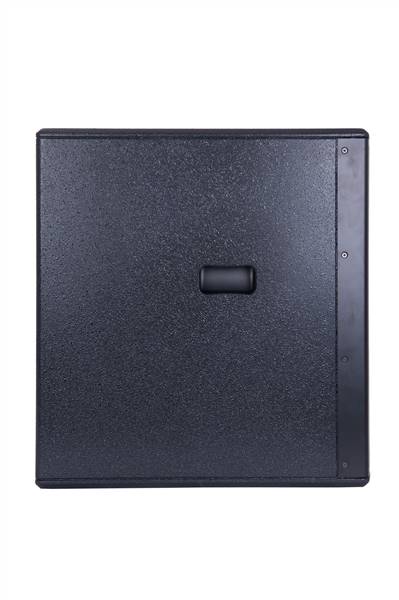

Mechanics
Housing
Multiplex plywood
Pole mount
M20
Width
470 mm (18.5 in)
Height
627 mm (24.7 in)
Depth
600 mm (23.6 in)
Weight
30.9 kg (68.1 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename:
Category:
Filetype:
Size:
Language:
Release:
DWG_DVX-PSW15
Drawing
DWG
0,46 MB
English
2015-05-04
CE-DVX-PSW15
Certifications
PDF
0,75 MB
English
2016-10-25
DVX-PSW15-datasheet-08-2016
Data Sheet
PDF
0,57 MB
English
2016-08-08
DVX-PSW-series---MAN_rev.2
Manual
PDF
1,04 MB
English
2017-11-15
